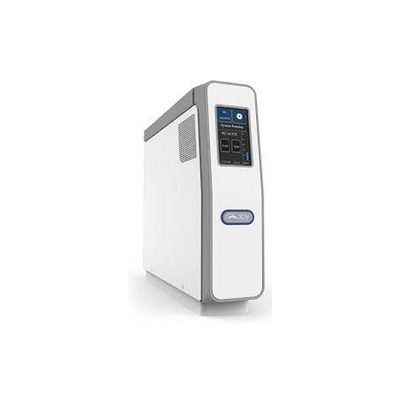

Sion - Model UCS-2000 -Ultimate Carrier Solution (UCS)
Sion Technologies’ patented Ultimate Carrier Solution (UCS) introduces a groundbreaking technology to the analytical industry, finally allowing labs to safely use Hydrogen as a carrier in GC & GC/MS applications by burning all excessHydrogen gas, split chemicals and fully controlling the supply of carrier gas to GC and GC/MS.
UCS-2000 is an attachment device to all Agilent available GC systems enabling laboratories to enjoy the full benefits of Hydrogen using their existing Agilent equipment, introducing significant cost savings and efficiency improvements while operating in a safer and more environmental friendly way. The UCS-2000 completely eliminates the release of hazardous gases and chemicals during analysis and saves more than 95% of carrier costs.
Safe and reliable Hydrogen supply
UCS2000 eliminates dangers associated with Hydrogen
Higher lab throughput
by saving 50% of the analysis time
Continuous, effortless operation
works 24/7/365, without requiring ongoing maintenance or consumables
Environmentally Friendly
completely eliminates the release of hazardous chemicals.
Fast ROI
95% cost savings compared to using Helium
-
Full control of the supply of carrier gas
-
Electronic selection of alternative carrier gas
-
Automated protection against flame-off, power loss, low gas supply, pressure, flow and more
-
Complete separation between the burner and control units for extra protection
-
Touch screen panel
-
Connect up to 2 injectors to one UCS
- Compatible Agilent GC Systems : 6890, 7820, 7890A, 7890B, 8860 and 8890
- Physical Dimensions : 540mm (W) x 113mm (D) x 400mm (H)
- Operating Voltage/Current : 100v-230v / 0.5A (12 & 24 V DC)
- Weight : 4 Kg
- Touch Control Panel Size : 4.3" (131mm x 78mm)
- Split Flow : 0-300 ml/minH2
- Operating Temperature : 1308C-1.200SC
- Fault Detection : <10 seconds
- Adjustable Automatic Fault Recovery : Admin defined
- Main Carrier : H2
- Alternate Carrier : HeorN2
- H2 Consumption : H2 mode: 20-70 ml/min He mode: 40-140 ml/min
- Air Consumption : 500-600 ml/mi n
- Number of Injectors : Up to 2 split/split-less
- Input Ports : 3 (H2, air, alternate carrier)
