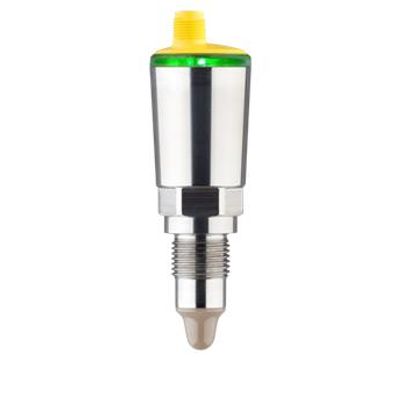

VEGAPOINT - Model 21 -Ultra-Compact Capacitive Limit Switch
For the detection of water-based liquids. Application area: From DK > 1.5, from thread ½", universal connection G1" for hygiene adapter, M12, valve plug, transistor output, IO-Link, wireless operation, Ex and hygiene approvals. VEGAPOINT 21 is a low-cost limit switch for the detection of water-based liquids. The optional universal connection for hygiene adapters ensures reduced installation effort and leaner stock keeping and perfectly meets the requirements for hygienic processes in the food, beverage and pharmaceutical industries. It can be used without adjustment in the application. With IO-Link, it offers continuous digital data transmission.
- Coloured 360° status display, adjustable
- Easy integration into control systems through IO-Link communication
- Low-cost limit switch with smallest installation dimensions
Point level detection in the mixer
To the applicationLevel, pressure and point level measurement in the fermentation tank
Condenser pressure and point level measurement.
To the application- - [Meter - Foot]
- -40 ... 115 °C [°C - °F]
- -1 ... 64 bar [Bar - kPa - psi]
- 316L
- PEEK
- ≥ G½, ≥ ½ NPT
- Clamp ≥ 2", DN50 - DIN32676, ISO2852
- Clamp ≥ 1" - DIN32676, ISO2852
- Clamp ≥ 1½" - DIN32676, ISO2852
- Slotted nut ≥ 1½", ≥ DN40 - DIN 11851
- Slotted nut ≥ DN25 - DIN 11851
- Slotted nut ≥ DN32 - DIN 11851
- EPDM
- FKM
- IP66/IP67
- IP69
- Transistor (NPN/PNP)
- IO-Link
- -40 ... 70 °C
- ATEX / Europe
- IEC / worldwide
- KOSHA / Korea
- NEPSI / China
- UKR Sepro / Ukraine
- INMETRO / Brazil
- KTL Korea
- CSA / USA and Canada
- CCC
- IA
- UKEX
- Dust explosion protection through housing "t"
- Increased safety "e"
- 3A
- EHEDG
- FDA
- EG1935/2004
- ABS
- BV
- CCS
- DNV
- LR
- RINA
- WHG
- VLAREM II
- Smartphone / Tablet / PC via Bluetooth
- PC, PACTware and DTM, IODD
- 360° status display
