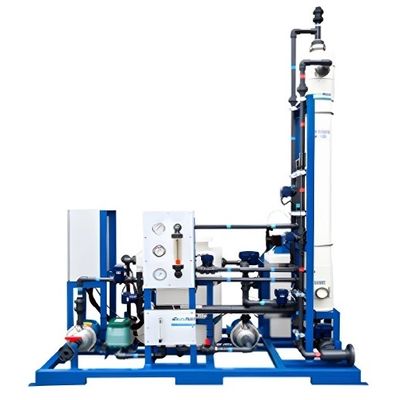

Enviromatch UltraMatch - Model 800 -Ultrafiltration UF Systems
FromEnviromatch Inc.

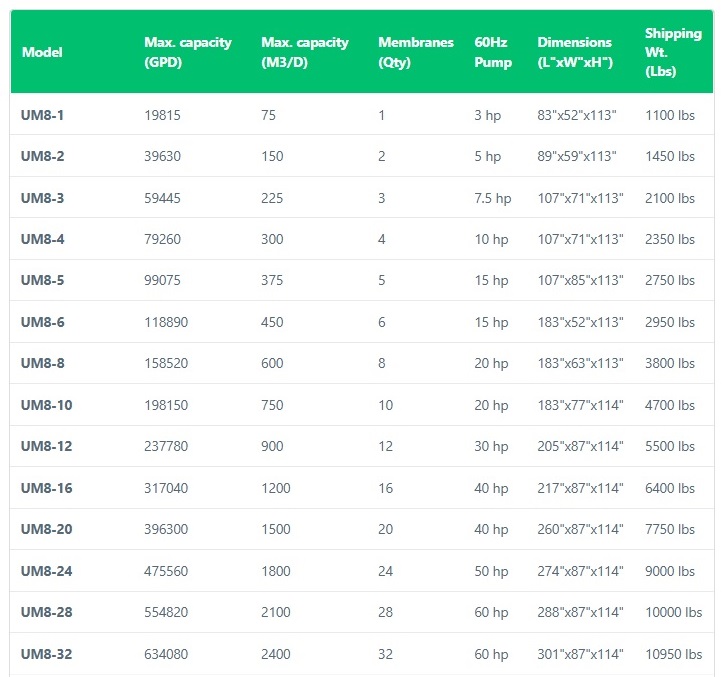

Looking for a reliable and efficient ultrafiltration system? Look no further than UltraMatch 800-Series Ultrafiltration (UF) Systems! With a capacity ranging from 19,815 to 792,600 GPD, our standard units are perfect for RO system pretreatment, tertiary treatment, and greywater applications. Whether you need a containerized unit or a custom-built system, UltraMatch has got you covered. Trust us to deliver high-quality, cost-effective ultrafiltration solutions that meet your unique needs. Contact us today to learn more!
Most popular related searches
ultrafiltration system
ultrafiltration
hollow fiber ultrafiltration membrane
air release valve
hollow fiber ultrafiltration
chemical dosing system
chlorine dosing system
dosing system
motorized ball valve
automatic air-valve
Main items
- Air scouring blower
- Powder-coated steel frame
- Feed and backwash pump
- Automatic backwash and automatic air scouring operated for 30 minutes
- Chlorine dosing system for chlorine cleaning operated chlorine cleaning per 24 hours
- Pressurized Ultrafiltration PVDF hollow fiber UF Membrane, Outside-to-inside flow direction
- High chemical resistance with Polyvinylidene Fluoride (PVDF), High mechanical strength with high filtration flux
Electrical
- Power supply 460 / 3 ph / 60 Hz
- PLC-based control panel
- Programmable time delay and set points
- Status amber / green lamps
- Alarms red lamps
- 110V/ 60Hz control voltage
- Motor starter with overload relays
- HMI-colored touch screen
- NEMA 12 enclosure with disconnect and Inter-lock rotary handle
Valves
- Motorized ball/butterfly valve with PLC controller
- PVC isolation valves
- PVC sample valves
- Automatic air release valve/vacuum breaker
Instrumentation
- Product, backwash, and air scouring flow meter/monitor
- Liquid-filled pressure gauges, 2-1/2″ dial size, panel mount for inlet/outlet pressures
- Chemical dosing system
- Membrane cleaning unit
- Custom designed Units
- Differential pressure initiation for backwash
- Basket filter pretreatment
- 230V/3 Ph/60Hz power supply
- 380-415V/3 Ph/50Hz power supply, 220V control panel
