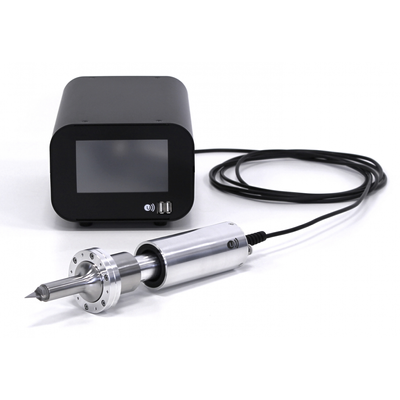

Everywave - Model CUT:WAVE -Ultrasonic Cutting System
The CUT:WAVE Ultrasonic Cutting System is engineered for manufacturing industries aiming to cut a diverse range of materials with precision and efficiency. It facilitates the continuous cutting and shaping of large surface areas, making it ideal for both traditional fabrics and modern composite materials including plastics with a reticular structure. This system is optimized for minimal energy consumption during operation, ensuring an eco-friendly footprint. The technology also supports rubber mold trimming, and it adapts to various industrial applications requiring advanced ultrasonic capabilities. Everywave's commitment to ultrasonic research and development allows for the customization of systems to meet specific industrial needs, offering feasibility studies and bespoke designs using Finite Element Method (FEM) for enhanced accuracy and reliability.
CUT: WAVE is an ultrasonic cutting system for manufacturing industries that need to cut both standard fabrics and materials, as well as new plastic and composite materials, or with reticular structure. The system, designed to have maximum efficiency and minimum energy consumption, allows continuous cutting and processing of large surfaces of material, as well as the possibility of creating any type of shaping. It can also be used for trimming rubber molds.
Compatibility
The system is controlled by a Unitech Titako Mini Cut generator.
- The converter and all the parts are FEM designed (finite element analysis and optimization);
- Efficiency > 90%;
- High reliability and long-lasting thanks to the converter’s innovative construction systems;
- interchangeable blade, of various sizes, for different materials;
- remote control from generator, PLC
- Operating frequency : 20 kHz
- Maximum power : 500W
- Power supply (Titako generator) : 110-500V AC
- Power control : continuous
