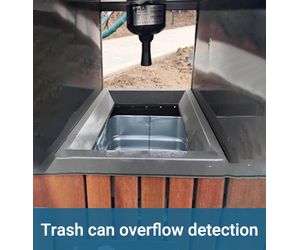

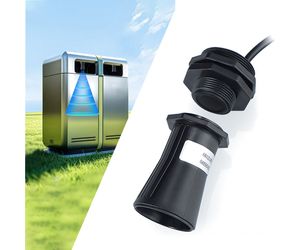

DYP - Model A01 -Ultrasonic Garbage Overflow Detection Sensor

FromShenzhen Dianyingpu Technology Co., Ltd.

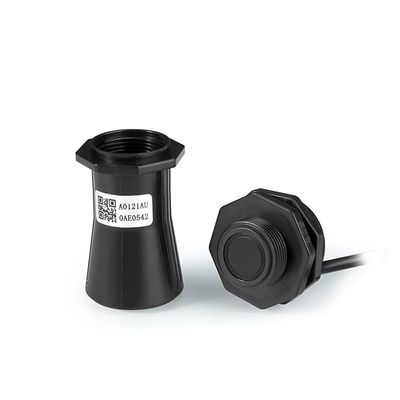

DYP-A01 Integrated Waterproof Module is a ranging module adopting ultrasonic sensing technology. Equipped with a high-performance processor and high-quality electronic components, the module features stable and reliable performance with a long service life. It adopts a waterproof ultrasonic transducer and boasts strong adaptability to complex working environments.Matched with a dedicated horn nozzle, the module is applicable to scenarios requiring a larger detection range.

Most popular related searches

ultrasonic distance sensor

ultrasonic sensor

distance sensor

ultrasonic transducer

waste container

waterproofing

temperature probe

temperature monitoring

waste production

A01A Series: Supply voltage 3.3V～5V (RS485 version: 5V～12V);
A01B Series: Supply voltage 3.3V～5V (RS485 version: 5V～12V);
A01C Series: Supply voltage 5V～12V;
UART automatic output;
UART controlled output;
PWM automatic output;
PWM controlled output;
Switch signal output;
RS485 output;
Standby current as low as 10μA;
Integrated enclosed waterproof probe;
Temperature compensation;
Operating temperature: -15℃ ～ +60℃;
Storage temperature: -25℃ ～ +80℃;
Measurement accuracy: ±(1cm + S×0.3%) (S stands for measured value);
ESD protection design. ESD protection devices are added to the probe shell and I/O leads, complying with the IEC61000-4-2 standard.

High protection grade;
Strong anti-interference capability;
Stable and reliable data output;
Low power consumption;
Excellent ESD resistance;
High measurement accuracy;
Compact size, easy installation;
Supports automatic output mode to reduce the load of the host processor;
Supports controlled output mode to minimize power consumption according to practical application scenarios.
