Federal Signal - Model UCT-WLN -Universal Controller
The UCT-WLN series of siren controllers allow third-party devices and sirens from other manufacturers to be controlled and monitored from Federal Signal SS2000+, Commander®, CommanderOne® and CommanderOne LE siren control products. The UCT-WLN model series are optimized to seamlessly integrate Whelen® Vortex, Omni, Hornet, and WPS Series sirens with the advanced features of Federal Signal’s siren control and status monitoring systems to provide full control and status monitoring capability.
- Optional two-way radio transceiver (VHF, UHF, or 800 MHz)
- Optional FSIoT 4G cellular modem
- Radio PA audio output
- Four individually programmable output relays with selectable N.O. or N.C. contacts
- Four contact closure inputs for remote landline activation
- Two RS232 Serial/Programming Ports and IÇC Buss
- Eight remote sensor inputs and a built-in monitor for AC voltage
- Local display of function counters and incoming decoded signals
- 24 Vdc Operation
- Two-Tone, DTMF, POCSAG, and MSK Decoders
- Configurable control of any six Whelen siren control functions plus SI-TEST and Cancel
- Status Monitoring: AC Power, DC Voltage, Intrusion, Communication Status, Amplifier Status, Rotation (optional), Local Activation, Last Function (time/date)
- Compatible with SS2000+, Commander, and CommanderOne siren control systems
Communication options are available for conventional High-Band, UHF, 800 MHz, Digital P25, and 4G cellular networks. Federal Signal’s FSIoT unique cellular multi-carrier communications platform utilizes AT&T®, Verizon®, and T-Mobile® with automatic carrier selection to dynamically optimize reliability and performance. In addition to multi-carrier redundancy, additional communications redundancy can be obtained by combining cellular and RF communication options within the Universal Controller.

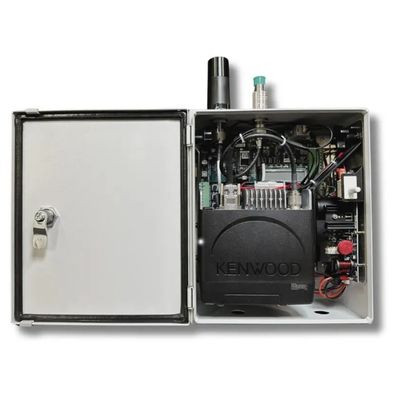

The UCT-WLN Controller and communication devices are housed in a lockable NEMA 4 enclosure, rated for indoor/outdoor use. A small interface PCB mounts in the Whelen siren controller to minimize external field wiring by using an I2C buss instead of discrete wiring, simplifying installation.
