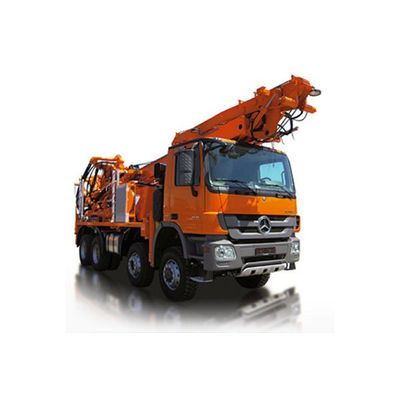

E+M - Model UH3 -Universal Drilling Unit
Fully hydraulic universal drilling units for all drilling methods. All indicated data are maximum values. Those and the equipment components are options. It might also be possible that they are mutually exclusive.
Most popular related searches
Drilling mast with hydr. feed
- Free mast height max.: 11.6 [mm]
- Top drive stroke max.: 7.6 [mm]
- Pressing force max.: 75 [kN]
- Traction force max.: 150 [kN]
- Hook load max.: 320 [kN]
- Mast extension max.: 3 [mm]
Auxiliary extension
- Displacement path max.: 1.2 [mm]
- Loading max.: 20 [kN]
Top drive
- Torque max.: 21 [Nm]
- Speed max.: 320 [min-1]
- Clearance max.: 123 [min/mm]
- Tilting/pivoting angle max.: 85/102 [°]
- Tilting moment max.: 59 [kNm]
Rod screwing device
- Rod bell, mechanical Ø max.: 250 [mm]
- Gripping head, hydraulic Ø max.: 200 [mm]
Collet chuck, hydraulic
- Clearance, open/closed Ø max.: 1.150-300 [mm]
- Clamping - Ø max.: 273 [mm]
Holding gripper, hydraulic
- Clearance, open/closed Ø max.: 1.150-420 [mm]
- Clamping - Ø max.: 419 [mm]
Breaking pliers, hydraulic
- Clamping - Ø max.: 273 [mm]
- Breaking strength max.: 34 [Nm]
- Rotary casing table/machine, hydraulic: possible / possible
- Drilling cable winch, hydraulic, traction force max.: 80 [kN]
- Auxiliary winch, hydraulic, traction force max.: 30 [kN]
- Striking mechanism, hydraulic, load / number of impacts: - [kN/i]
- Slush pumps, delivery rate / pressure max.: 750/20 [L/min] / [bar]
- Compressors / generators: possible / possible
Carrier vehicle: Various designs are possible
