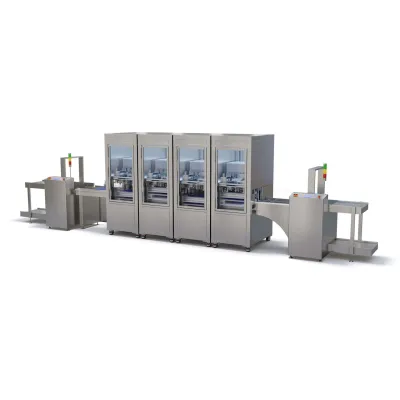

Averna - Model UniLine -Universal In-Line Test Platform
UniLine brings 20+ years of test & quality experience to your manufacturing floor and test automation delivers accurate results, without bias. By standardizing test, product quality improves as costs decrease. Equipment becomes understandable and manageable across departments and station support becomes simple. This scalable platform adjusts to the current requirements of your application and grows with its evolution. Reuse and expand your manufacturing equipment from design to support.
- Its scalable design allows you to build the solution that best fits your manufacturing requirements and grows with your needs.
- Automate all functional, safety, ICT, and EOL tests as well as part labeling and programming operations for partial or final PCB assemblies.
- Improve product quality and service by eliminating manual intervention and automating smarter data management.
- Increase your return on investment by accommodating multiple product variations and product types with reusable equipment.
UniLine brings 20+ years of test & quality experience to your manufacturing floor and test automation delivers accurate results, without bias. By standardizing test, product quality improves as costs decrease. Equipment becomes understandable and manageable across departments and station support becomes simple.
This scalable platform adjusts to the current requirements of your application and grows with its evolution. Reuse and expand your manufacturing equipment from design to support.
Accelerate Time to Market for any Industry
Accelerate time to market with the most flexible tester on the market. Uniform automated equipment minimizes operator intervention and ramp up, which gets your product out the door. Repeatability delivers high throughput and protects your brand.
- Test Types
- · Calibration
- · Performance
- · Power
- · Visual Inspection
- · Communication
- · Force
- · Programming / Security Configuration
- · ICT
- · and many others
- Parameters to Measure
- · Voltage
- · Current
- · Transmit Power
- · Receiver Sensitivity
- · RF Spectral Measurements
- · Force
- · Light
- · Audio
- · Surface Defects
- · and many others
- Station Dimensions - Typical (mm/in)
- 600 x 1000 x 2000
- 24 x 39 x 79
- DUT Size Envelope - Typical (mm/in)
- 400 x 400 x 200
- 16 x 16 x 8
- Customizable
- Handling Time
- Approx. 4s
- Loading / Unloading / Connection to DUT
- Automatic, In-line System
- Internal transport / Conveyor
- Customizable
- Communication Type between Stations
- Customizable, SMEMA as example
- External Data Interface
- MES, OPC UA (TSN), TCP-IP, PLC Connectors
