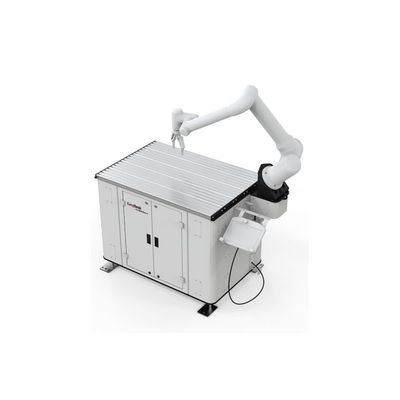

EasyRobotics - Model EasyDesk -Universal Robot Workstation

This robot workstation is a user-friendly robot cell series compatible with 99% of modern collaborative robots, all CNC machines and any type of conveyor belt. It is carefully designed to simplify the automation process and speed up a wide range of production applications.

A new workstation for robots from EasyRobotics is constructed from solid 6mm steel, and has three different tabletops suitable for different applications.

• EasyDesk Tray  - spacious stainless steel robot worktable with 96 universal spots to accommodate parts.
• EasyDesk Alu  - spacious cobot table for mounting of all types of clamping equipment or parts for processing.
• EasyDesk Welding - robot welding workstation with plasma nitrided steel tabletop with laser cut 16mm holes, suitable for clamps and fixtures.

The setup is easy, because the product is delivered 90% assembled. All you need is to mount the cobot, install the controller and start producing.

Universal solution with spacious tabletop made from stainless steel, containing 96 spots for parts accommodation.

• Customizable tabletop parts-tray. You can choose standard 94x Ø0-70 parts-tray or customize it for your requirements.
• Good investment. The typical return on investment is less than 1 year.
• Universal solution. Increased capacity makes it the perfect solution for CNC machine tending. It`s equipped with Universal 2 mm parts-tray with 94 spots.
• Increased efficiency. Automated supply of the CNC machine ensures consistent high quality. The required man-hours for operation can be reduced from 8 hours to less than 1 hour.

EasyDesk Tray is mainly designed for CNC machine tending, but also can be used for the following applications:

• Polishing
• Welding
• Bin Picking
• Assembly
• Measurement

Robot workstation is equipped with re-attachable mount plate. The place of attachment of the cobot`s mount plate can be changed along the entire length of 3 working sides - that allows to choose the best position to ensure 100% reach over the whole tabletop.

EasyDesk Alu from EasyRobotics is a spacious robot cell, prepared for use in numerous applications in large series productions. It`s a convenient and universal solution for large series productions. The wide tabletop 1200x800mm is made of 40mm aluminum profile, which supports work with up to 300 kg and provides versatility of use. Despite its size, Easydesk is highly mobile - it can be easily moved at any time using a pallet lifter. EasyDesk Alu is good for following applications:

• Cutting
• Finishing and Polishing
• Deburring
• Grinding
• Quality Control

Robot workcell can be used in countless industries, among which:

• Metal and Machining
• Plastic and Polymers
• Automotive
• Pharma
• Electronics
• Chemical

EasyDesk Welding is a high-quality welding and assembly table with built-in universal mount for all types of cobots and a retractable controller compartment. It is made for automatic/semiautomatic welding of any metal constructions of suitable size.

• High quality welding tabletop. The tabletop of EasyDesk Welding is made of a high quality plasma nitrided steel, which guarantees long and reliable work. It has laser cut 16mm holes along the entire length, suitable for robust clamping and fixtures.
• Perfect size for welding. Robot workstation is equipped with perforated, plasma nitrided steel plate X 8.7, 1200 x 800 x 12mm.
• Steady, but flexible and mobile. EasyDesk`s trotters can be securely fixed to the floor with fasteners, but if you need to move it to a different location or place - you can easily do it with a pallet lifter.

Our automatic welding solution has the following features:

• The robot cell is 100% compatible with all cobots.
• The robot arm can be moved around on all 3 sides.
• Cobot console mounted at a 0° and 45° angle to ensure reach across the entire tabletop.
