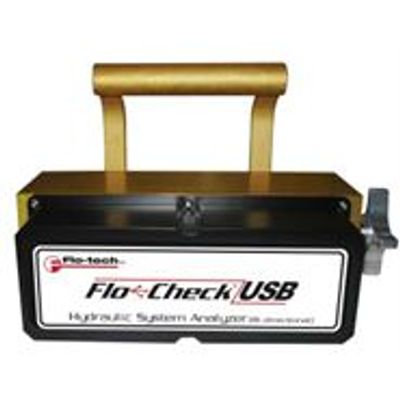

Flo-Check - USB Hydraulic System Analyzer

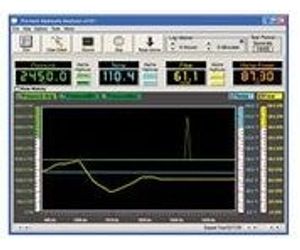

The Flo-Check USB represents the next generation of hydraulic test equipment. The device simultaneously measures flow, pressure, temperature and power within a hydraulic system. This data is displayed and logged through a custom Windows-based software application; data is received from the Analyzer through a standard USB cable (both software and cable are included with the unit). The Flo-Check USB is ideal for testing, troubleshooting and diagnosis in mobile and industrial hydraulic applications, and for setting hydraulic components such as pumps, valves and motors. The unit is bi-directional and includes a low-resistance load valve and internal pressure relief discs.
Most popular related searches
pressure and temperature sensor
mechanical flow meter
flow sensor
pressure sensor
flow meter
hydraulic testing
flow monitoring
pressure monitoring
analysis system
hydraulic calculation
- Flow ranges from 3 - 85 GPM (15 - 321 LPM) up to 7 - 200 GPM (26 - 757 LPM)
- Port sizes in SAE 16 (G 1) and SAE 24 (G 1-1/2)
- Accuracy: Better than ±1% of reading @ 32 cSt
- Field selectable US or metric readings
- High and low set point alarms for flow, pressure, and temperature
- Captures pressure spikes up to 10,000 PSI (0.2 milliseconds duration)
- Exports saved data to Microsoft Excel and other spreadsheet programs
- USB powered
- Easy to use, plug and play
- Calculates hydraulic horsepower
- Select continuous monitoring or capture data manually
- Logs up to 12 hours
- Records alarm history
- Flow ranges from 1 - 15 GPM (4 - 56 LPM) up to 7 - 200 GPM (26 - 757 LPM)
- Port sizes in SAE 12 (G 3/4) to SAE 24 (G 1-1/2)
- Rated to 6000 PSI (414 Bar)
- Accuracy ±1% of full scale
- Load valve simulates system pressure
- Large 3-1/2 digit LCD
- Flow straighteners manufactured into meter

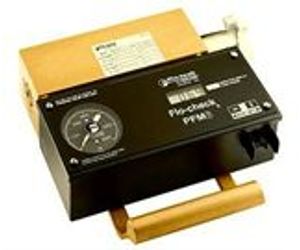

- PFM6 measures flow, pressure, and temperature
- US and metric conversions
- PFM8 provides measurement of power (HP & kW) directly
- Carrying handle for improved portability
- Bi-directional model available

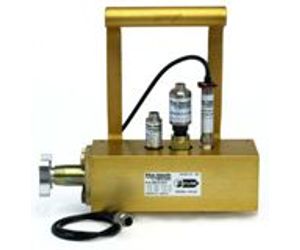

- Measures flow, pressure, and temperature simultaneously
- Flow ranges from 1 - 15 GPM (4 - 56 LPM) up to 7 - 200 GPM (26 - 757 LPM)
- Port sizes in SAE 12 (G 3/4) to SAE 24 (G 1-1/2)
- Rated to 6000 PSI (414 Bar)
- Accuracy ±1% of reading @ 32 cSt
- Load valve simulates system pressure
- Flow sensor available with 4-20 mA, 0-5 Vdc, or frequency output
- Temperature and pressure sensors transmit 4-20 mA output signals
- Flow straighteners manufactured into meter
- Carrying handle for improved portability
