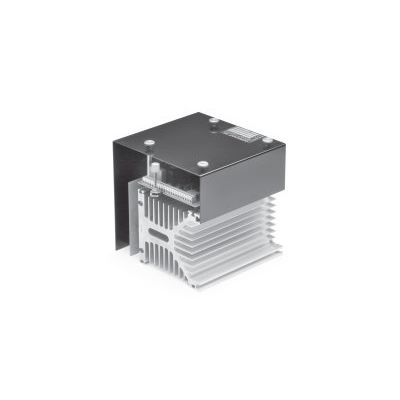

Model UVT 1000 -UV Lamp Power Controller

Designated Use:
- Step less adjustment of 30 - 100 % lamp power
- Fast change between standby and full power (10 ms)
- Pulse operation
- Regulation of electric power
- Regulation of UV-intensity

Advantages:
- Cheaper than electronic power supply
- Cheaper than multiple contact switching of chokes
- Energy cost reduction
- Heat reduction
- Increase of effective UV-Output
- Installation into existing transformer and electrical supplies at later date possible
- Increase of lamp life time
- Compensation of mains voltage fluctuations
- Compensation of UV-intensity loss due to lamp aging processes
- Integrated current monitoring with alarm contact at lamp fault
- Limitation of starting current
- Optimized for UV-lamps

Technical Data:
Mains voltage: 230 V ±10% oder, 400 V ± 10%, 50/60 Hz
max. current: 100 A AC
max. power: 44 kVA
max. current consumption: 0,1 A AC
Control input: 0 to 10 V DC ( max. 15 V DC ) or potentiometer
Switching output: relay with zero-potential change-over contact 230 V/2A
Response time: < 20 ms (full- to part-power) 10 ms (part- to full-power
Operation principle: phase-angle control
Weight: 5,2 kg
Dimensions: 193 x 180 x 200 mm W x H x D)
Installed position: cooling ribs vertical
Ambient temperature: 10 - 40°C
Air humidity: 30 - 60%
Protection class of casing: IP 00
