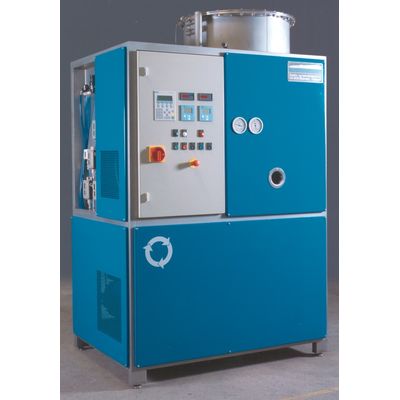

BJORN - Model ELT -Vacuum Evaporator
BJORN Evaporator ELT for the treatment of aggressive wastewater; Concentration of aggressive wastewater at a low temperature under vacuum. Solvent recycling. Environment safe vacuum operation. Energy saving heat recovery. Compact design. Low temperature, no product decomposition.
Most popular related searches
vacuum evaporation
vacuum evaporator
organic solvent
wastewater oil emulsions
solvent recycling vacuum
separator principle
wastewater concentration
wash water
evaporator system
wastewater concentrator
- Photo Industry
Concentration of spent developer, fix and bleach. Recycling of wash water and stabiliser are examples of where the BJORN Vacuum Evaporator has found its use in the photo industry. - Pharmaceutical Industry
Recycling of organic solvents and concentration of CIP cleaning fluids are examples of where the pharmaceutical industry has used Vacuum Evaporators from BJORN Evaporator. - Manufacturing Industry
The Vacuum Evaporator is being used in separation of oil-bearing wastewater and degreasing baths in the manufacturing industry. - Chemical Industry
In the chemical industry the Vacuum Evaporator is used in the concentration and recycling of spent chemicals including organic solvents. - Galvanic Industry
Concentration of spent electrolyte, degreasing and rinse baths are examples of where the BJORN Vacuum Evaporator is put to use in the galvanic industry.
BJORN Vacuum Evaporator ELT Easy Access
- Concentration and recovery of problematic effluent:
Waste ink, lacquers, paint, glue etc. - High level of concentration
- Easy manual cleaning of the heat exchanger
- Environment safe vacuum operation
- Energy saving heat recovery
- Very low temperature, no product decomposition
- Minimum fouling and scaling within the heat exchanger due to the extra water jacket
Areas of Application for BJORN Easy Access:
- The Graphical Industry : The evaporation of problematic liquids is put to use in concentration and recovery of waste ink and printing liquids in the graphical industry.
- Paint : Concentration and recovery of very dirty and sticky types of paint, lacquers and colours are among the areas where the evaporation of problematic liquids is to be solved by a BJORN Vacuum Evaporator.
- Pharmaceutical Industry : Recycling of organic solvents and concentration of CIP cleaning fluids are examples of where the pharmaceutical industry has used an Evaporator from BJORN Evaporator.
- Galvanic Industry : Hot dip galvanising is one case where a Vacuum Evaporator from BJORN Evaporator solves the problem of evaporation of problematic liquids.
BJORN Evaporator Type ELTS for Fully Automated and Continuous High Concentration of Oil-bearing Wastewater and Emulsions
In former days treatment systems for oil-bearing wastewater and emulsions often based on combinations of various chemical, physical and mechanical processes. These systems needed a lot of space and were very labour intensive. Furthermore, they created relatively big amounts of sludge for disposal and consumed chemicals for the process.
With the introduction of the BJORN Evaporator state-of-the-art multistage evaporation systems type ELTS for oil-bearing wastewater and emulsions, the disadvantages of former treatment systems may be completely eliminated. As a matter of fact, the output of the BJORN Evaporator multistage evaporator consists of clean water and an oil concentrate with more than 90% oil content. No chemicals are needed as the processes involved are based on thermal and hydrodynamic separation principles. In fact, the BJORN ELTS provides the users a profit due to the sales of the oil concentrate. Labour costs are kept to a minimum as the BJORN ELTS are PLC-controlled and designed for fully automated operation. Due to the compact design, even the space dedicated to the process may be minimised.
The BJORN ELTS evaporators are tailor-made according to your specific needs, allowing you to specify exactly what you require and avoid expenses for obsolete features.
BJORN ELTS may be delivered with capacities from a few hundred litres per hour up to
several cubic metres per hour.
Bjørnkjær conceives and manufactures complete turnkey distilling plants for recovery and purification of alcohol and other solvents. These are constructed according to the specific needs of the customers.

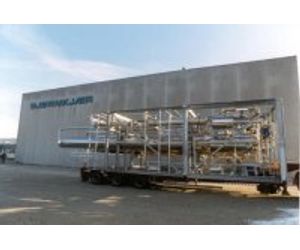

The image represents a turnkey plant delivered to the factory of Novo Nordisk in Kalundborg, Denmark. The plant constructed in special alloy is compliant with the very stringent requirements of GMP (Good Manufacturing Practice) in order to get the approval from the FDA (Food and Drug Administration). The plant measures 13.5 m in height, 5 m in length, 3 m in width and weighs 18 tons.
