UniTemp GmbH

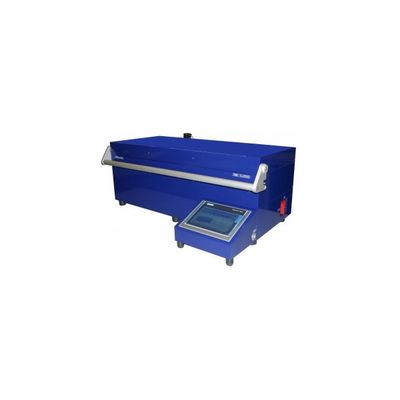

UniTemp - Model RSS 3X210-S -Vacuum Reflow System
FromUniTemp GmbH
Vacuum Reflow System with SIMATIC© control for substrate size up to 3 x (200 x 200 mm) Lift pins for wafer lift up and down. The RSS-3X210-S Reflow Solder System is a very compact and easy useable tool for the use in laboratories and clean rooms as table top unit. The chamber is vacuum sealed and equipped with a viewing window. This allows the view control of the soldering process. The unit is standard equipped with a Mass Flow Controller for the process gas.
Most popular related searches
mass flow control
mass flow
flow control
water cooling
cleanroom
process gas
cleanroom furniture
laboratory cleaning
water control
cooling water
The reflow solder system is perfect for the following applications:
- flux-less soldering
- flip chip process
- adhesive bonding
- solder bump reflowing
- soldering of power devices
- heat treatment of semiconductor wafers
- prototype development
- quality control
- heated area: 3 heated plates with each 210 mm x 210 mm
- chamber height: 40 mm (optional up to 80 mm)
- Mass Flow controller for Nitrogen (5 nlm)
- vacuum atmosphere up to 10exp.-3 hPa (KF16 connector)
- temperature up to 300 °C (higher on request)
- ramp up rate: better 120 K/minute
- ramp down rate: better 60 K/minute
- SIMATIC© process control with 50 programs and 50 steps each
- 7" touch panel
- water cooled chamber (controlled and watched)
- electrical connection type: 3x 230V,3P, +N, 18 kW
