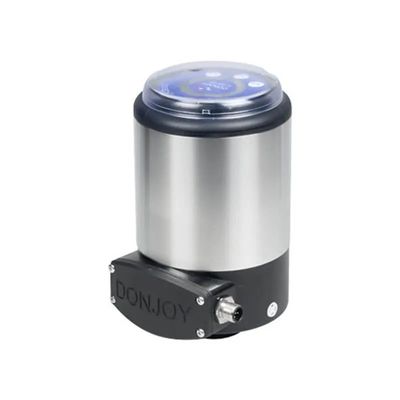

Model C-TOP-1721 -Valve Control Unit
Donjoy Valve Control Unit C-TOP-1721 is a straight-stroke pneumatic valve control unit designed for valve process control. It‘’s compatible with most PLC (programmable logic controller) automation systems with digital communication or bus communication (AS- I BUS). Including position feedback output, three-segment LED display, anti-leak function, valve opening and closing control, etc., It used to control all types of process valves. It can be installed on various pneumatic valves, e.g. pneumatic butterfly valves, ball valves, diaphragm valves, angle seat valves, globe valves, reversing valves, mixing proof valves, etc.
Communication support: AS-I-BUS
Input: PNP DC 24V
Output: PNP DC 24V & 4-20mA
Operation: automatic & manual
Power supply: DC 24V ± 10%
Air pressure: 5.0-7.0Bar (suggest)
Protect class: IP67
Certification: EU ATEX explosion-proof II 3 G Ex ic IIC T6 Gc
Control input: PNP DC 24V
Feedback Output : PNP DC 24V & 4-20mA
Power supply: DC24V ± 10%
Bus communication: AS-I-BUS
Accuracy: repeat positioning accuracy ≤ 0.5mm;
Setting: One-button auto-tuning function
Operating mode: automatic & manual
Leak prevention diagnostic function
Display: three-segment lamp colour
Open: green / red
Close: red / green
Middle position: yellow, suitable for anti-mix valve
Range: 0-60mm
- Support AS-I Bus communication version 3.0, control maximum of 62 units
- Self-adjustment valve position
- Support manual or automatic operation
