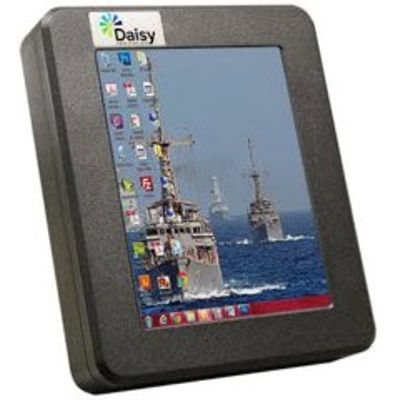

Daisy - Model 6171TN -Variable Action Button Rugged Network Computers

SHARE

The Model 6171TN is a rugged network computer specifically designed for applications in training environments, notably for the US Navy's land-based centers. Featuring a compact design with simplified installation and removal, it utilizes standard electrical connectors. The unit includes a 6.5-inch LCD with 640x480 resolution and offers 400 nits of standard brightness through high-efficiency, dimmable LED backlighting. It accommodates a resistive touchscreen with buttons that can display up to 21 characters across three lines. Configuration options include RPC calls compatible with X11R6 and Windows systems, and it supports an IP over USB interface. Constructed from Aluminum 6061-T6 with a powder-coated finish, the device is durable and designed for operation in temperatures from 0 to 40 ºC, making it suited for demanding environments. Additionally, it supports a wide range of viewing angles and has a projected life expectancy of 1 million touchscreen presses with a 100 g actuation force.

Most popular related searches
rugged computer
land use
network modeling

This version of the Variable Action Button (VAB) is for a training environment designed and manufactured specifically for the US Navy's land based training centers. It's compact structure and standard electrical connectors make installation and removal extremely simple.

  • Aluminum 6061-T6, Powder Coated
  • Designed for Easy Installation and Removal
  • 6.5" LCD
  • 640x480Resolution
  • 400 nits Standard Brightness
  • Long Life, High Efficiency, Dimmable LED Backlighting
  • Resistive Touchscreen

Materials

  • Enclosure : Aluminum 6061-T6, Powder Coated
  • Design : Desktop

Physical Dimension

  • Dimensional Drawing : 6171TN Drawing
  • Height : 7.25 in
  • Width : 6.00 in
  • Depth : 1.5 in
  • View Height (VH) : 5.30 in
  • View Width (VW) : 4 in
  • Weight : 3 lb

Electrical

  • Input Power : 5 VDC
  • Maximum Power : 15 W

Environmental

  • Operating Temperature : 0 to 40 ºC
  • 32 to 104 ºF
  • Storage Temperature :
  • -40 to 70 ºC
  • -40 to 158 ºF
  • Non-Condensing Relative Humidity : 5 to 95 %

Communication Protocol

  • Communication Protocol : Custom RPC calls through IP over USB X11R6 and Windows™ compatible

Flat Panel Specifications

  • Display Size : 6.5 in
  • Maximum Resolution : 640 x 480 px
  • Typical Horizontal Right Angle : 80 º
  • Typical Horizontal Left Angle : 80 º
  • Typical Vertical Up Angle : 80 º
  • Typical Vertical Down Angle : 60 º
  • Standard Brightness : 350 nits
  • Backlight : LED

Touchscreen Button Specifications

  • Resistive Touchscreen : No Tactile Feedback
  • Characters Per Line : 7
  • Number of Lines Per Button : 3
  • Button (Matrix) Size : 0.6 in²
  • Button Spacing : 0.63 in
  • Life Expectancy : (Touchscreen) 1 Million Presses
  • Actuation Force : 100 g

Note

  • Note : Specifications are subject to change without notice.
