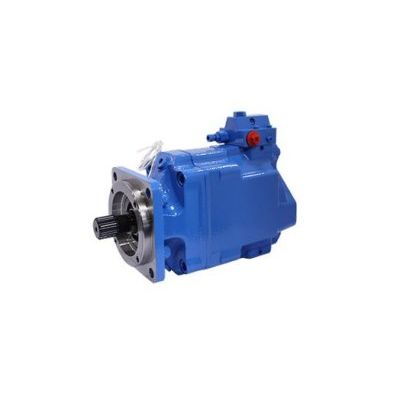

Model TXVA -Variable Displacement Pump

Of similar design to the TXV series pump, with SAE C flange and shaft, the TXVA series pumps are available in 2 models with a maximum displacement of 75 and 92 cc/rev. Maximum operating pressure is up to 400 bar.

Most popular related searches

displacement pump

hydraulic displacement pump

waste truck

waste collection vehicle

flow regulation

pump component

flow regulator

flange according to SAE C (2 bolts, or 4 bolts) – US version,
UNF ports,
models of 75 and 92 cc/rev.
max. operating pressure 400 bar (420 bar peak),
max. displacement at full displacement of 1900 to 2000 rpm depending on the model,
fitted with “load sensing” regulation for flow adaptation in the pump,
can be mounted directly on the engine PTO or on the vehicle gearbox PTO,
drive shaft in splined or keyed version.

truck equipment (handling cranes, forestry cranes, refuse trucks, spreaders and snow removal vehicles, and other public works equipment),
military,
agricultural machinery.

Model TXVA -Variable Displacement Pump

Caracteristics and Advantages

Application
