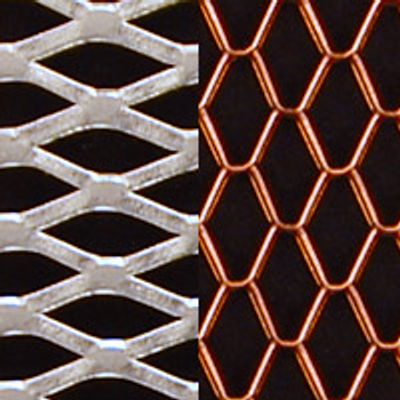

MicroGrid - Variable Overall Thickness Mesh

After the material is expanded, the overall thickness of the mesh is greater than the original metal thickness. The final mesh thickness can be controlled to meet your needs. Each configuration has a practical range of overall thickness. As a rule of thumb, the maximum thickness is 1.6 times the strand width. The minimum thickness is the original metal thickness, or slightly below the original thickness in the case of a reduced product. For example, the range for 5 Cu 7-125 would be .004″ – .011″. The overall thickness is not specified in the product code. Simply tell us what you require.
