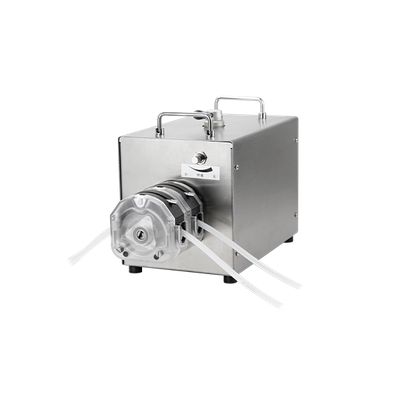

Longer - Model PH600-1 -Variable Speed Industrial Peristaltic Pump

Suitable for high temperature, wet, or flammable/explosive environments,the stainless steel housing offers excellent corrosion resistance and easy cleaning.

Most popular related searches

peristaltic pump

directional control valve

air treatment system

control valve

throttle valve

explosive environment

Uses a pneumatic motor as the driving unit and compressed air as the power source, no electrical components, suitable for high temperature, wet, or flammable/explosive environments.
The high-quality pneumatic motor is maintenance-free and oil-free. The equipped air treatment unit (filter and regulator) to ensure clean air supply and prevent contamination of the working environment.
Stepless speed control is achieved through a throttle valve, and a wide flow rate can be delivered with various pump heads and tubing sizes.
The stainless steel housing offers excellent corrosion resistance and easy cleaning.

Speed range: 150rpm-600rpm (unstable below 150rpm)
Running direction: CW or CCW (controlled via a direction control valve)
Control type: Manual control,Stepless speed control via a throttle valve;Start/stop & direction control via a direction control valve
Display: Pressure gauge on the air treatment unit (FR unit) indicates the supply air pressure.
Rated air supply pressure: 0.6MPa
Maximum air consumption: 3.7L/s
Housing material: Stainless steel
Air supply tubing: ID*OD 10x6.5mm PU
Overload protection: Motor slows or stops during overload and resumes automatically when cleared
Environment temperature: 0-60?
Dimensions(LxWxH): 446*223*301(mm)
Weight: 17kg
Noise: <85dB

Longer - Model PH600-1 -Variable Speed Industrial Peristaltic Pump

Features

Parameter
