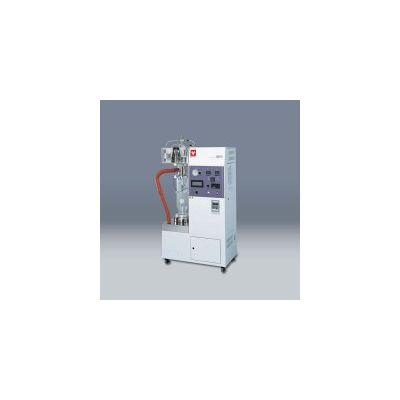

Yamato - Model GB-210B -Versatile Granulation Spray Dryer

FromYamato Scientific America Inc.

A compact and versatile spray dryer designed to granulate powder and dry wet powder using a fluid bed. This is a fluid bed drying granulator used in combination with the basic unit GB210 and mini-bed attachment GF200.

Most popular related searches

fluid bed drying granulator

digital temperature controller

static electricity

exhaust duct

A compact and versatile spray dryer designed to granulate powder and dry wet powder using a fluid bed. This is a fluid bed drying granulator used in combination with the basic unit GB210 and mini-bed attachment GF200.
Conditions such as hot air temperature, air amount, binder liquid flow amount can be set easily with the setting dial on the front of the unit
Chamber is made of ultra hard glass and the user can observe status of the fluid bed or spraying status
Flowage meter, spraying pressure meter and chamber inlet/outlet temperature indicator are useful for evaluation of data
Unit can also be used for spray drying by installing the mini spray attachment GF300 (optional)
Standard equipped with an automatic lift to enable convenient installation or removal of the glass chamber attachment

Temp. adjusting unit setting range : 40 to 220°C (inlet temperature), 0 to 98°C (outlet temperature)
Temperature adjusting accuracy : Inlet temperature ±1°C
Spraying system : Two-way nozzle, Nozzle No. 1A as standard
Drying air amount adjusting range : 0 to 0.7 m³/min
Spray air pressure adjusting range : 0 to 0.3 MPa
Liquid sending pump flow rate range : 0 to 26 mL/min
External output : Inlet temperature, outlet temperature, temperature outlet (4-20 mA)
Automatic lift : Moving up/down of glass chamber automatic lift
Temperature adjusting device : PID digital
Touch panel : Blower, heater, liquid sending pump, pulse jet switch, error display
Control select switch : Inlet temperature, output temperature control switch (outlet temp. control is conditional)
Temperature sensor : K thermocouple
Heater : 2.0 kW (at 200V) to 2.88 kW (at 240V)
Liquid sending pump : Fixed amount peristaltic pump
Spraying air pump : Spraying air compressor (sold separately) is used.
Service outlet : For stirrer: AC100V, Max. 2A
Suction blower : Bypass blower, brushless DC motor
Filter : Suction filter, exhaust filter
Spray nozzle cooling mechanism : Connector: nipple x 2, O.D.:ø10.5 mm
Spray air connection diameter : Nipple diameter:ø7 mm
Exhaust connecting diameter : ø50 mm
Safety function : Inlet/outlet temperature overheat, sample feed reverse rotation mechanism, over current electric leakage breaker, nozzle connection error
External dimension WxDxH : 760 x 420 x 1350 mm
Weight : ~110 kg
Power supply (50/60Hz) rated current : AC220V 17A AC240V 18A Switching of terminals necessary
Accessories : Silicon tube (with a stopper) x 3, tiron tube (with a stopper) x 2, exhaust duct (with one hose band) x 1, outlet temperature sensor, spray air tube, sample box, static electricity removal earth, Teflon braided hose 5m (with two hose bands), a container table
