Model Typ: UEV -Vertical Agitator

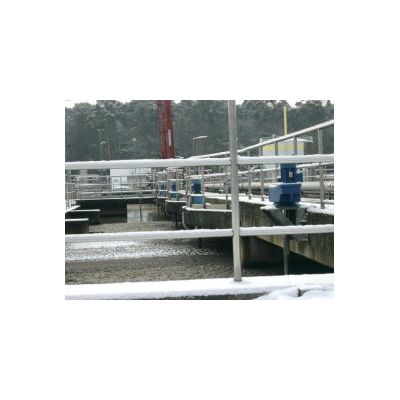

It is used in aeration and denitrification tanks, primary anaerobic tanks. It can be used for max. diameters and edge lengths of 5,0 up to 35,0 m and a max. water depth of 2,5 up to 8,0 m. A tank capacities up to 6000 m³ can be stirred with one of these type of agitators. For homogenisation of sludge liquor tanks.

Most popular related searches

spur gear

denitrification tank

denitrification anaerobic

sedimentation tank

denitrification

aerator

No sediments on the tank bottom
No air input and aerosol discharge through the surface
Clam water surface
Vortex-free recirculation
On extra using pedestal necessary
Individual design and optimised for different customer requirements

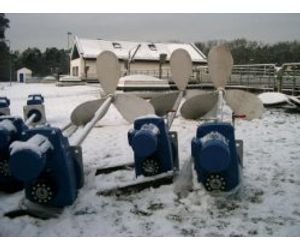

Slowly turning mechanical agitator with drive in dry arrangement and vertical shaft
Welded propeller with 2 or 3 blades for all diameters
Radius formation adapted to circumferential speed
Direct thorough mixing and homogenisation
Propeller designed for gentle treatment of floccs
Designed like a ship screw
Stable spur gear motor with housing in agitator design
Installation and removal possible at filled tank
No need for gear dismantling / installation to change oil
Left-hand or right-hand rotation available, provided that the agitator is designed accordingly
Generally we can use all steel material, like steel, plated or coated steel, stainless steel,
special high corrosive resistant stainless steels like 1.4462, 1.4539 (Duplex) or even higher
alloys like Hastelloy

Model Typ: UEV -Vertical Agitator

Special Advantages:
