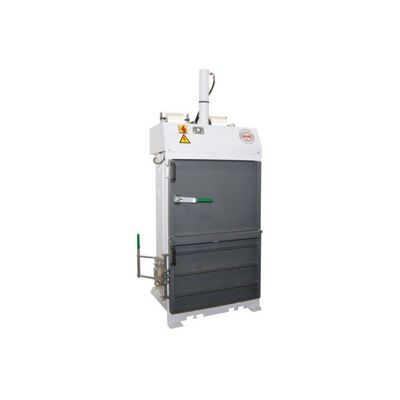

HSM - Model V-Press 503 -Vertical Baling Press
FromHSM GmbH Co. KG
Easy installation and operation make the HSM V-press 503 as the ideal model for small material volumes.
Most popular related searches
- To fill the press, the upper half of the doors is swung to the right
- Bell-crank lever for quick and safe opening of the door
- Bale removal and transport with discharge trolley
- Automatic start of the pressing process after closing the door
- Low installation height and small footprint
- Suitable for cardboard as well as film
- Bale strapping with polyester tape
- Order number: 6153111
- EAN: 4026631052313
- Pressing power: 30 kN
- Specific pressing power: 8.4 N/cm²
- Driving power: 1,1 kW
- Voltage / Frequency: 230 V / 50 Hz
- Cycle time when idling vacío: 27 s
- Volume throughput in idle operation (theor.): 1,25 m³/h
- Loading height: 661 mm
- Loading aperture width x height: 700 x 470 mm
- Bale weight: 50 Kg
- Width x Depth x Height: 1020 x 812 x 1922 mm
- Weight: 330 kg
- Method of strapping: vertical
- Number of strappings: 2
- Type of consumables: Strapping tape
- Industry type: Print & Packaging, Logistics & Distribution, Retail, Industry & Manufacturing
- Press material: Mixed paper, Cardboard, Plastic film
- Use for product line: V-Press
