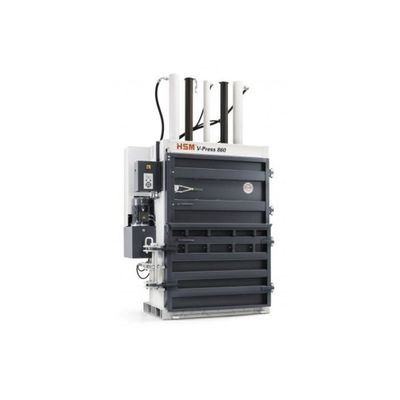

HSM - Model V-Press 860 S -Vertical Baling Press

The model HSM V-Press 860 S is the perfect machine for the volume reduction of stiff plastics (e.g. monitor and TV set housings) and expanding plastic film (other materials upon request).

Most popular related searches

vertical baling press

baling press

Rapid stroke technolgy saves time and money
To fill the press, the upper half of the doors is swung to the right
Reinforced press chamber and hydraulic door lock - Convenient opening and closing, no manual effort required
Double quantity of retaining claws optimize the compression of the pressing material and reduce the number of loading actions
Automatic start of the pressing process after closing the door
Convenient membrane keypad with text display, which shows the current status of the machine
Strapping with wire - optional tape station available for strapping with polyester tape or wire according to requirements

Order number: 6148854
EAN: 4026631056618
Pressing power: 434 kN
Specific pressing power: 46.37 N/cm²
Driving power: 4 kW
Voltage / Frequency: 400 V / 50 Hz
Cycle time when idling vacío: 25 s
Volume throughput in idle operation (theor.): 12 m³/h
Loading height: 1110 mm
Loading aperture width x height: 1195 x 650 mm
Bale weight: 230 Kg
Width x Depth x Height: 1797 x 1076 x 2985 mm
Weight: 2285 kg
Method of strapping: vertical
Number of strappings: 4
Type of consumables: Wire
Industry type: Recycling & Disposal, Logistics & Distribution, Retail, Food & beverage industry, Industry & Manufacturing, Print & Packaging
Press material: PET bottles, aluminium beverage cans, soft packaging, Polystyrene, HDPE / LDPE hollow containers & plastic bottles, Big Bags, Clothing, Punch waste/residue, Plastic film, Mixed paper, Cardboard
Use for product line: V-Press
