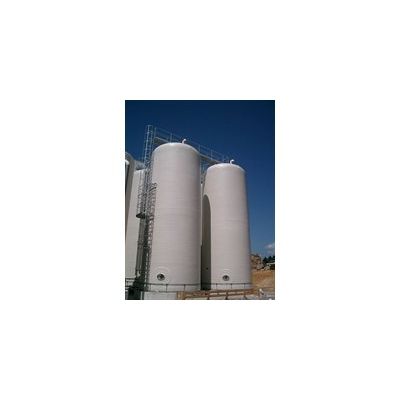

Model S/FP -Vertical Flat Bottom Tank
FromSELIP S.pA.
Vertical flat bottom tanks Selip type S/FP are made in fiberglass FRP / GRP. Calculation of FRP tanks is realized according to European regulation EN 13121-3. In alternative Selip can dimension these GRP tanks according to all the International standards that incorporate fiberglass FRP / GRP particularly the most common are:
Most popular related searches
- BS 4994 – 1997,
- ASTM D-3299,
- ASTM D-4097,
- DIBt Z-40,
- AD 2000 Merkblatt-N1,
- AFNOR NF T57-900,ù
- ASME Sez.X
- ASME RTP-1.
Geometries
- FRP fiberglass tanks have flat bottom and dished top.
- Standard capacities start from 1 m³ up to 200 m³ and are available in the attached data sheets.
- Upon request FRP tanks can be realized with capacity of 250 m³ or 300 m³.
- Standard diameters start from 1000 mm up to 4000 mm.
- Upon request can be realized diameters lower than 1000 mm, as Ø 400, Ø 500, Ø 600, Ø 700, Ø 800 mm.
- The biggest diameter is Ø 4500 mm.
- FRP fiberglass tanks with flat bottom, can be realized also with :
- flat top (see drawing)
- inside sloped bottom (see drawing)
- external sloped bottom (see drawing)
- Support
- Vertical flat bottom tanks , are placed on cement concrete made by the customer according to Selip drawing. Calculations of concrete are not supplied by Selip.
