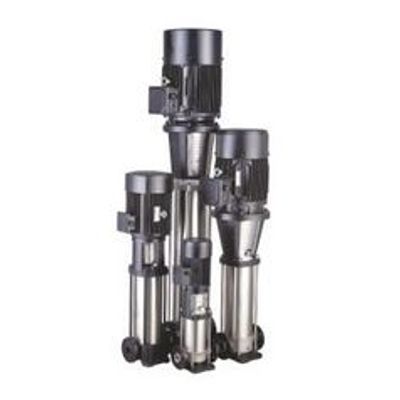

Zirantec - Model FV Series -Vertical Multistage Pumps
The ZIRANTEC vertical multistage centrifugal pumps are non-self- priming with inline suction and discharge ports on the same level. The inline construction provides a smooth flow of liquid through the entire system. The vertical inline pump is ideal for applications where space is an issue as its horizontal alternative can take up to 2-3 times more space. These pumps are specially designed for high pressure applications where no suction lift is required. All wetted parts are made of corrosion resistant stainless steel which offers best hydraulic efficiency and durability. All pumps are fitted with maintenance free cartridge mechanical seal for safe handling, easy service and access. ZIRANTEC pumps have wider choice to suit any kind of high pressure requirements in its category. These pumps are being supplied with DIN flanges(Round and PJE) as standard option and other type also can be supplied against specific requirement.
The ZIRANTEC vertical multistage pumps are offered with ZIRANTEC energy efficient motors to give better efficiency and life. All single phase motors are fitted with thermal overload protector to safe guard the winding while overloading and extreme operating conditions. These pumps are supplied with high efficient IE2 motors in 3 Phase; IE3 motors also can be supplied on request.
PERFORMANCE CURVE CONDITIONS
- The conditions below apply to the curves shown on this entire catalogue.
- Curve tolerance are according to ISO 9906, Grade 2B.
- The performance are taken at rated voltage & speed that are only indicative.
Actual discharge depends on availability of water in well / tank, height of water column from the suction pipe end. - The measurements were made with airless water at 20°C. When pumping liquids with a density higher than of water, motors with correspondingly higher outputs must be used.
- The bold curves indicate the recommended performance range.
Pipe friction losses have not been included in the performance curves & performance tables.
The ZIRANTEC can also offer complete pressure boosting system with single or multiple pumps, VFD controller, manifold, pressure gauge, pressure switch, pressure tank etc with single and multi-pump options.
- Mechanical seal can be replaced in the installed position without removing pump from the system
- Different type of flange options against specific requirement
- Optional customized pressure boosting systems
- Inbuilt thermal overload protector for single phase motors
- Pressure boosting systems
- Fire fighting systems
- Industrial washing systems
- Sprinkler irrigation systems
- High pressure pumping application in water treatment
- plant and boiler plant
- Utility water supply in industries
