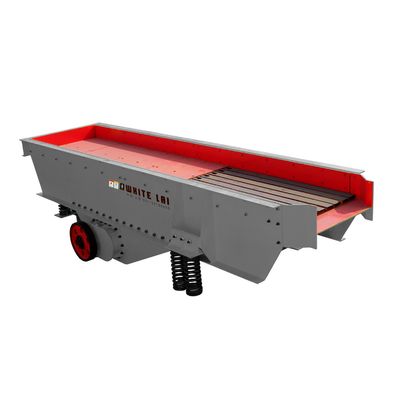

White-Lai - Vibrating Feeder
WHITE LAI vibrating grizzly feeders are designed mainly for fixed primary crushing plants. They regulate the feed rate to the crusher while separating materials by size. The vibration unit is run by two vibrators located underneath, or with a motor-driven eccentric driveshaft.
Type: Necessary Equipment
Input Size: 0-1000 mm
Processed Materials:
River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangue etc..
Applications:
Aggregate Field, Concrete Mixing Plant, Dry Motar Plant Desulfurization, Quartz Sand etc.
Strong, Trouble-Free Operation
The two overriding advantages of the white lai series feeders are the sound design and maximization of strength. To ensure strong, trouble-free operation, white lai engineers have designed the vibrating grizzly feeder for maximum strength at all crucial stress points. Each feeder features extra heavily reinforced cross members that run the entire course of the unit. Adding to the strength and overall durability, each white lai vibrating feeder comes standard with replaceable steel liners on the feeder pan and side plates.
Choice of Adjustable Grizzly Configurations
When looking to remove large amounts of material from your crushing circuit, WHITE LAI offers a wide array of grizzly configurations which are built to suit the customer’s every need. Available on all WHITE LAI feeders are tapered, steel grizzly bars. These bars have a self-cleaning design and are fabricated to be both replaceable and adjustable.
