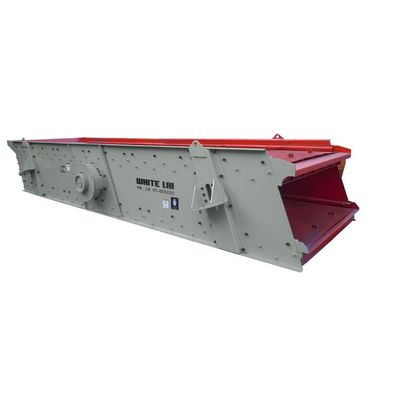

White-Lai - Vibrating Screen
WHITE LAI YA type inclined vibrating screens are built in rugged construction to be stationed with a 15-degree angle in operating fields. Their design is simple, and they are especially useful and economical in screening applications for coarse crushed stones and minerals. The vibrating unit consists of an unbalanced eccentric shaft with added-on counterweights allowing for different stroke travels to generate a circle motion. Users can adjust the counterweights whenever necessary. Compared to horizontal screens, the inclined screens need less power thanks to the 15-degree slope and gravity effect.
Type: Necessary Equipment
Input Size: 0-300mm
Processed Materials:
River Gravel, Granite, Basalt, Quartz, Iron ore, Diabase, Limestone, Coal Gangue etc. .
Applications:
Aggregate Field, Concrete Mixing Plant, Dry Motar Plant, Quartz Sand etc.
Easy to use and maintain
WHITE LAI Inclined Vibrating screens are very easy to use, and can be used in primary, secondary or tertiary screening.The incline can be adjusted between 15 and 20°. The screens have 2, 3 or even 4 decks, spaced for easy access and maintenance.
WHITE LAI screens are efficient
WHITE LAI screens are well suited to high efficiency, large capacity sizing operations. They are ideal for high tonnage operations such as coal and mineral processing or large-scale aggregate productions. Single, Double, Triple and Four deck arrangements are available to suit the requirements of different projects.
