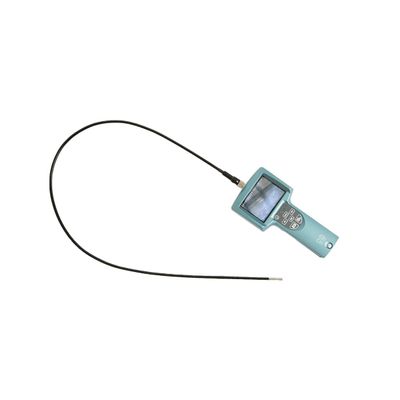

BoresEye - Model 2030 -Video Inspection System

SHARE

Our most versatile video line, the BoresEye works with, flexibile, articulating and push rod camera assemblies starting as small as 3.9mm. The Danatronics BoresEye series is the ideal cost effective video inspection system. The BoresEye2030 line offers an interchangeable system that allows you to go from a 5.5mm 6M straight camera, to a 3.9mm articulating camera or a push rod camera system, with the twist of a cable making it a truly economical system. It’s counterpart, the BoresEye2040 uses robust and time tested accessories with its standard 1.19” camera head.

Most popular related searches
video inspection system
push rod camera
push-rod camera system
video inspection
inspection system
waterproofing
interface monitoring
videoscope
temperature probe
  • 3.5" LCD Display
  • Available in 2 way articulation up to 3M
  • Supports Video Recording (MPEG4) and snapshots/stills (JPEG)
  • Includes a 1 GB SD card for storing video and images and editing on a PC
  • With 16 operation languages software
  • Support AV out (PAL/NTSC selectable)
  • Jet Engine Inspection (on or off-wing)
  • Airframes
  • Heat Exchangers
  • Boiler Tubes
  • Underwater
  • Law Enforcement/Military

The Boreseye2030 is designed for use with small-diameter interchangeable articulating and non-articulating camera assemblies. Non-articulating cable lengths range from 1M to 30M and are available in flexible, semi-rigid and even a 30M push rod option. 2-way articulating cameras assemblies are available up to 3M in length. Both camera styles are offered in diameters as small as 3.9mm. Due to the interchangeable nature of the BoresEye, displays and camera assemblies are sold separately. Shown right with the push rod camera assembly.

3mm - Flexible Cable

  • 2030-3-1M 1 Meter, 3.9mm BoresEye Camera Assembly
  • 2030-3-2M 2 Meter, 3.9mm BoresEye Camera Assembly
  • 2030-3-3M 3 Meter, 3.9mm BoresEye Camera Assembly

3mm - Semi Rigid Cable

  • 2030-3-1MSR 1 Meter, 3.9mm BoresEye Camera Assembly
  • 2030-3-2MSR 2 Meter, 3.9mm BoresEye Camera Assembly
  • 2030-3-3MSR 3 Meter, 3.9mm BoresEye Camera Assembly

4mm - Flexible

  • 2030-4-1M 1 Meter, 4.3mm BoresEye Camera Assembly
  • 2030-4-2M 2 Meter, 4.3mm BoresEye Camera Assembly
  • 2030-4-3M 3 Meter, 4.3mm BoresEye Camera Assembly

4mm - Semi Rigid

  • 2030-4-1MSR 1 Meter, 3.9mm BoresEye Camera Assembly
  • 2030-4-2MSR 2 Meter, 3.9mm BoresEye Camera Assembly
  • 2030-4-3MSR 3 Meter, 3.9mm BoresEye Camera Assembly

5mm - Flexible

  • 2030-5-1M 1 Meter, 5.5mm BoresEye Camera Assembly
  • 2030-5-2M 2 Meter, 5.5mm BoresEys Camera Assembly
  • 2030-5-3M 3 Meter, 5.5mm BoresEye Camera Assembly
  • 2030-5-5M 5 Meter, 5.5mm BoresEye Camera Assembly
  • 2030-5-10M 10 Meter, 5.5mm BoresEye Camera Assembly
  • 2030-5-20M 20 Meter, 5.5mm BoresEye Camera Assembly
  • 2010-30M 30 Meter, 5.5mm BoresEye Camera Assembly


5mm - Semi Rigid

  • 2030-5-1MSR 1 Meter, 5.8mm BoresEye Camera Assembly
  • 2030-5-2MSR 2 Meter, 5.8mm BoresEys Camera Assembly
  • 2030-5-3MSR 3 Meter, 5.8mm BoresEye Camera Assembly
  • 2030-5-5MSR 5 Meter, 5.8mm BoresEye Camera Assembly

8mm - Flexible

  • 2030-8-1M 1 Meter, 8.0mm BoresEye Camera Assembly
  • 2030-8-2M 2 Meter, 8.0mm BoresEye Camera Assembly
  • 2030-8-3M 3 Meter, 8.0mm BoresEye Camera Assembly

8mm - Semi Rigid

  • 2030-8-1MSR 1 Meter, 8.0mm BoresEye Camera Assembly
  • 2030-8-2MSR 2 Meter, 8.0mm BoresEye Camera Assembly
  • 2030-8-3MSR 3 Meter, 8.0mm BoresEye Camera Assembly
  • Display Unit
    • Power: DC 5V
    • Display: 3.5" TFT LCD Monitor
    • Interface: USB (1.1/2.0)
    • AV out: (PAL/NTSC selectable)
    • Battery: Rechargeable Li-ion Battery
    • Power Charger: 100~240V AC in / 5.5V DC out
  • Insertion Tube and Light Source
    • Resolution (Dynamic Static): VGA resolution provides real 640x480
    • Waterproof: Cameras are waterproof and available with 35, 45 and 55 degree mirrors.
    • Camera length and diameter:
      • 3.9mm straight camera assembly available, interchangeable from 1-10M
      • 5.5mm straight camera assembly available, interchangeable from 1-30M
      • 4.3mm straight camera assembly diameter available, interchangeable from 1-10M
    • Accessories: Available with 35, 45 and 55 degree mirrors and a magnet
    • Camera Cable Length: from 1 meter to 30 meters,
    • Field of View (FOV): 67º
    • Depth of View (DOV) 1.0 cm to infinity
    • Light Source: 4 LED (OD 5.5mm)
    • Probe Working Temperature: -20º to 60º C
    • Ingress Protection: IP 57 (OD 5.5mm)
