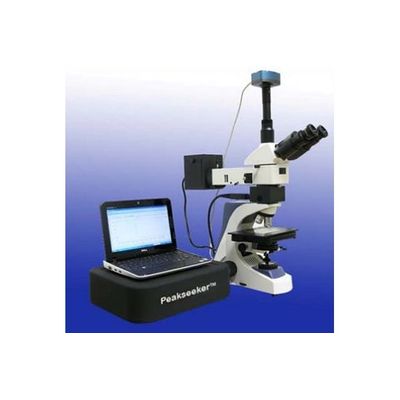

Raman Systems -Â Model RSM -Video Raman Microscope
The Raman Systems RSM Video Raman Microscope is an upright laboratory microscope that couples to a Raman Systems spectrometer (sold separately). The accessory is supplied with a Reflected Light Illuminator and a USB Color Video Camera.
Most popular related searches
raman microscopy
microscopy raman
raman system
fiber optic probe
raman
microscopy
raman spectrometer
laboratory microscope
spectrometer
raman spectrometer system
The RSM Video Raman Microscope works with the Raman Systems models PeakSeeker™ and PeakSeeker Pro™ spectrometers mating to the fiber optic probe. The USB Color Video Camera facilitates precise sample positioning of the laser spot from the Raman spectrometer onto a solid sample surface.
The RSM Video Raman Microscope is supplied with long working distance, infinite plan achromat objectives. The higher magnification objectives provide a smaller laser spot size.
Order Codes
- RSM-785 for spectrometer models PEK-785; PRO-785; PRO-785E
- RSM-532 for spectrometer model PRO-532
- Eyepiece : Wide field 10X (22mm) binocular
- Objectives: Infinity Corrected
- Magnification : Working Distance
- 4X 25 mm
- 10X 11 mm
- 20X 8 mm
- 50X 2 mm
- Sample Stage : Dimensions: 190 mm x 150 mm
- X-Y Range: 75 mm x 50 mm (manual)
- Focusing: Coaxial coarse & fine adjustment
- Fine focusing scale 0.002 mm
- Illumination: Brightfield Reflected
- 12V 30W brightness variable
- Camera: 1.3 MP Color CMOS
- USB2.0
- C-mount
- 1.8 meter long USB cable
- 0.5X image reduction lens
- 0.01mm linewidth stage micrometer
- Software CD
