Emberion - Model VS20 Core GigE -VIS-SWIR Camera Core

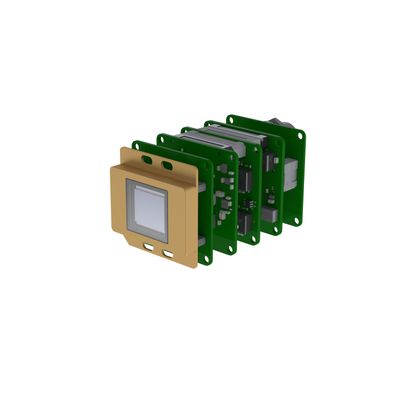

Emberion VS20 Core GigE interface offers a unique broad-spectrum and wide dynamic range imaging performance. The camera core is unhoused and it comprises the sensor, front-end, processing and IO module boards. The VGA-resolution image sensor is based on a proprietary image sensor technology and comprises a light-absorbing Colloidal Quantum Dots (CQD) layer built monolithically on a tailor-made CMOS readout integrated circuit. The CQDs provide an extremely wide spectral response range spanning from visible (VIS) to near infrared (NIR) and up to short-wave infrared (SWIR) wavelengths. The dynamic operation range of the image sensor is very large, owing both to the low noise and non-saturating characteristics of the photodetector.
Wide, tunable spectral range covered with a single sensor array , from visible 400 nm (VIS) light to short-wave infrared 2000 nm (SWIR).
Large inherent dynamic operation range, enabling High-Dynamic-Range (HDR) imaging
Cost-efficient sensor manufacturing process, providing affordable camera solutions for a wide range of imaging applications
In house designed CMOS ROIC supporting low noise
Easy integration for various systems enabling key application areas.
HIGH DYNAMIC RANGE
High Dynamic Range – High dynamic range sensor incorporated in VS20 camera. Emberion’s HDR with 80dB performance is ideal for large variations in brightness level with a single exposure.
- Can handle large variations in irradiance level: operation in day and night conditions, better contrast
- Bright spots do not obscure neighbouring dark objects: headlights in low-light conditions
Better contrast in SWIR than in VIS light: camouflage materials designed for VIS and human eyes.
BEYOND 1700NM EXTENDED RANGE
Emberion’s camera extends beyond 1700nm compared to incumbent technologies, up to 2000nm. Applications such as PVC detection in waste recycling can be hugely beneficial using 1700nm peak for plastic sorting or detection of the strong water peak at 1920nm. This can be clearly demonstrated using the camera.
The images show that using 1920nm narrowband pass filter and halogen lamps the VS20 can be used to detect moisture absorption. It shows water is very strongly absorbed in that region and can be used for identifying water ingress , food quality, moisture in wood and paper (pulp).
Image sensor specifications
Image sensor type: Emberion colloidal quantum dot (CQD) photodiode
Spectral range: 400 to 2000 nm
Pixel pitch: 20.0 μm x 20.0 μm
Resolution in pixels: 640 x 512
Image size: 12.80 mm x 10.24 mm
Image diameter: 16.39 mm
Fill factor: 90 %
Operable pixels: > 99.9%
Shutter: Global, built-in electronic
Cooling: Built-in thermoelectric cooler (TEC)
Camera specifications
Ambient operating temperature: -20 to +40 °C
A/D conversion: 14 bits
Image processing: Non-uniformity correction, linearisation, defect pixel correction
Exposure time: Min 0.1 ms, adjustable with 1 μs resolution
Supply voltage: 12 ± 1 V, DC, Hirose LF10 connector
Power consumption: 10 W (typical)
Interfaces and mechanics
Lens mount: C-mount, optional
Dimensions (L x W x H) without the lens mount: 81.4 mm x 40.0 mm x 40.0 mm
Weight: Less than 120 g without lens mount and heat sink
Trigger: Trigger I/O (pins included in power connector) or triggering over Ethernet
Interface options
Image data: GigE Vision, up to 2.5 Gbit, RJ45 connector
Communications: GenICam compatible
Max frame rate (full VGA): 400 fps
Trigger: Trigger I/O (pins included in power connector) or triggering over Ethernet
Powering: 12 VDC
