Emberion - Model VS20 CL -VIS-SWIR Imagers

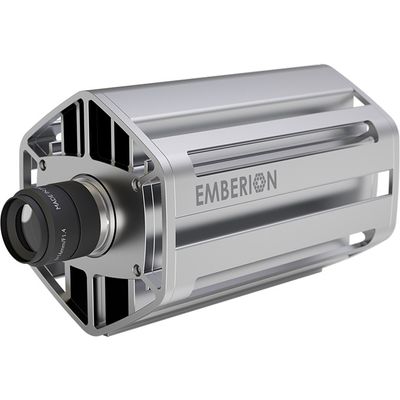

Emberion VS20 VIS-SWIR imagers of VGA resolution provide superior responsivity with very low noise over a broad spectral range from visible (400 nm) to short-wave infrared (SWIR, 2000 nm) wavelengths in room temperature operation. The dynamic range of the detectors is very large, owing to the low noise and a response that does not saturate. The Camera works at 100 fps with CL interface. Wide, tunable spectral range covered with a single sensor array , from visible 400 nm (VIS) light to short-wave infrared 2000 nm (SWIR). Large inherent dynamic operation range, enabling High-Dynamic-Range (HDR) imaging. Cost-efficient sensor manufacturing process, providing affordable camera solutions for a wide range of imaging applications. In house designed CMOS ROIC supporting low noise.
- Wide, tunable spectral range
- High-Dynamic-Range (HDR)
- Camera link compatibility
- 86 fps
- Cost-efficient and affordable
- Evaluation kit available
Image sensor specifications
Image sensor type: Emberion colloidal quantum dot (CQD) photodiode
Spectral range: 400 to 2000 nm
Pixel pitch: 20.0 μm x 20.0 μm
Resolution in pixels: 640 x 512
Image size: 12.8 mm x 10.24 mm
Image diameter: 16.39 mm
Fill factor: 90 %
Operable pixels: > 99.9%
Shutter: Global, built-in electronic
Cooling: Build-in 2-stage thermoelectric cooler (TEC)
Camera specifications
Ambient operating temperature: -40 to +55 °C
A/D conversion: 14 bits
Image processing: Non-uniformity correction, linearisation, defect pixel correction
Exposure time: Min 0.5 ms, adjustable with 1 μs resolution
Supply voltage: 11 to 13 Vdc (DC power jack)
Power consumption: 8 W (typical): To be confirmed
Interfaces and mechanics
Lens mount: C-mount, flange back distance: 17.526 mm
Dimensions (L x W x H) without the lens mount: 168.7 mm x 102.0 mm x 111.5 mm
Weight: 1.35 kg
Trigger: 5V TTL input or output (configurable)
Interface options
Image data: Camera Link Base configuration, SDR connector
Communications: Camera Link serial communications at (9600 baud)
Max frame rate (full VGA): 86 (16 bits)
Trigger: SMA connector for trigger input/output, 3.3/5V
Powering: 24V DC input
