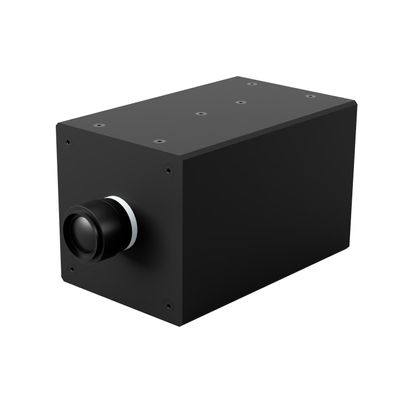

HAIP - Model BlackIndustry -VNIR Hyperspectral Camera
HAIP Solutions BlackIndustry VNIR Sensor is a smart line scanning (push-broom) visible and near-infrared hyperspectral imaging camera that allows the acquisition of real-time spectral data with very high spatial resolution. If you need external lighting, BlackIndustry is optimized for combined use with separate broadband LED lighting bar BlackBright.
OUTSTANDING SENSITIVITY
The outstanding sensitivity in the NIR range from 500 nm to 1000 nm is perfect for the use in industrial in-line applications. With a frame rate of 540 Hz at full frame and up to 1000 Hz at ROI, the sensor is suitable for high conveyor belt speeds, ideal for sorting applications.
EASY TO USE
Combining superior optical design with advanced holographic transmission grating technology, highend electronics and a sensitive CMOS detector, the BlackIndustry VNIR camera is an ideal tool for demanding environments.
INDIVIDUAL PRE-PROCESSING
Additional data pre-processing on camera is possible, as the camera has an integrated GPU (Nvidia Jetson). BlackIndustry VNIR is controllable and readable via BlackStudio or a dedicated API (C++ or Python). Code samples available upon request.
SMART HYPERSPECTRAL LINE-SCANNER
Spatial resolution of 960 pixels, internal GPU for pre-processing
VNIR (500-1000 nm)
100 spectral bands, high signal-to-noise ratio in NIR range
HIGH FRAMERATE
540 Hz at full frame and up to 1000 Hz at ROI
