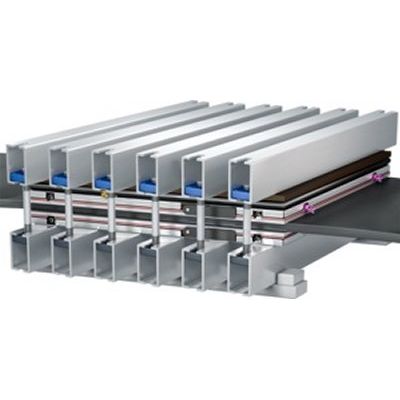

Model EMU -Vulcanizing Presses

Certified Pressure Bag

• robust rubber pressure bags with aramid reinforcement
• shape: rhombic 16° 42‘; 22°, rectangular 90°
• uniform pressure by the use of pressure bags
• either air pressure or a water/glycol mixture can be used as pressure medium
• when using air pressure the surface pressure is max. 70 N/cm² (100 psi)
• when using water/glycol mixture the surface pressure is max. 140 N/cm² (200 psi)

Various systems are available for pressure build-up: EMU-Air with control box

• surface pressure up to max. 70 N/cm² (100 psi)
• with safety valve and pressure gauge

EMU-Liquid with pressure water pumps

• pressure medium: water/glycol mixture
• pressure range: 70 – 140 N/cm² (100–200 psi)
• with safety valve and pressure gauge
• also suitable for draining pressure bags
• 400 V, 50 Hz *

Portable type

• capacity: approx. 9 liter/min
• weight: approx. 25 kg
• complete with tubular frame
• additional tank (30 or 50 liter) required
• capacity: approx. 15 liter/min
• weight: approx. 54 kg
• complete with protection frame
• additional tank (from 50 liter) required
• compatible with SPLICE WATCH

Mobile type

• capacity: approx. 15 liter/min
• weight empty : approx. 100 kg
• tank volume: 100 liter
• complete with chassis on solid tires
• additional 100 liter tank available (mobile without pump)
• compatible with SPLICE WATCH

Heating plates

• flexible heating plates and pressure bag system adapt to the conveyor belt`s surface during splicing
• particularly easy to transport due to the low weight of the single parts and the small dimensions
• uniform distribution of pressure due to NILOS surface pressure system
• flexible heating plates in sandwich construction
• shape: rhombic 16° 42‘; 22°, rectangular 90°
• low individual weight of heating plates

Cross Beams for pressure bag system

• light cross beams made of high-strength aluminium alloy
• maximum tensile and bending strength with minimum weight
• designed to be robust and to take up little space
• high safety standards due to insertion of the tensioning bolts with safety pins in the cross beam profile
• spacing rails for correct and secure assembly of the cross beams are included with the press
