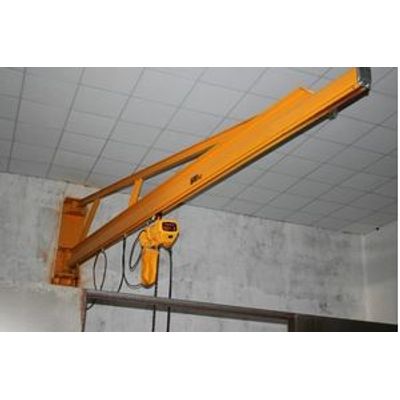

Tavol - Wall Jib Cranes
Wall jib crane is known as, which has a horizontal member (known as jib or boom) that supports a moveable hoist fixed to wall. The main advantage of using a wall-mounted system is the space-savings that it offers. They don’t require any type of floor or foundation support, and they can also be installed very close to the underside of the lowest ceiling obstruction, providing maximum clearance both under and above the boom.
Most popular related searches
jib crane
materials handling crane
workplace injury
safety product
workplace safety product
product safety
workplace safety

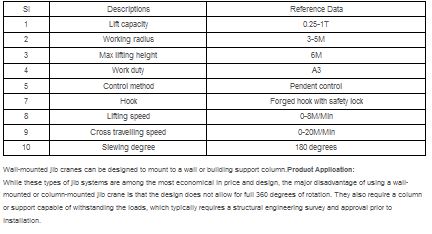

- Jib Crane Wall Type BX Model with 0.5 ton 1ton 2 ton 3 ton 5 ton
- BX Model Wall type Jib Cranes
- Lift capacity: 0.3- 5t
- Arm length: less than 6m
- Lift height: less than 12m
Suitable working conditions:
- This machine suitable to work in the dock, warehouse, workshop etc Fixed working conditions. It can work within the 360 degrees to lift, move and materials handling.
- This type machine is composed by the vertical shaft, revoliving arm, rotating shaft, hoist etc. The bottom of thevertical shaft is fixed on the concreate base. Horizontally Rotation of the revoliving arm: Manual, depend on the operator use the human force to push the impending working or self prepared rope etc device. The hoist travel with the right and left straight line on the H beam, use the hoist to lift the heavy materials.
- This type machine with advantages of the Simple structure, Operate convenience, Turning agile, wide working conditions.
- Ergonomic design;
- Increase worker productivity;
- Reduce workplace injuries;
- Improve safety.
