Model Q2050 Series -Wall Mount Enclosures

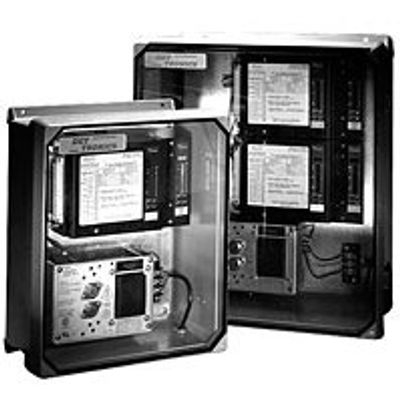

The Q2050 Wall Mount Enclosure Series using R8471 controller technology are designed for easy field installation of a comprehensive gas detection system. These enclosures are designed for a NEMA 4X rating and are available in two sizes. They are pre-assembled with any combination of up to six single channel gas controllers mounted within, including those for combustible, hydrogen sulfide, carbon monoxide, chlorine and oxygen gas detection. The enclosures can be supplied with a power supply that is pre-wired to the controller input power connections, or controller input power (+24 vdc) can be brought in from outside the enclosure and wired directly to the controllers.

The enclosures are made of fiberglass with a door that features a full view polycarbonate window and a stainless steel hinge and twist locks. Wiring access holes can be drilled at the time of installation or the enclosure can be provided with pre-drilled holes with watertight conduit fittings installed, as specified.

Installation of the Q2050 Series Enclosures with gas controllers involves mounting the enclosure, drilling a wiring access hole (if not custom drilled), installing appropriate hardware, then proceeding with the usual gas detection system wiring (providing input power, connecting the gas sensors to the controller, and connecting annunciating/ indicating/alarm response devices to the controller outputs). Two enclosure sizes are available:

Q2050 and Q2051

• Dimensions – Shown in Figure 1
• Capacity – One or two controllers with power supply, or One to four controllers without power supply

Q2052

• Dimensions – Shown in Figure 2.
• Capacity – One to four controllers with power supply

Q2053

• Dimensions – Shown in Figure 2.
• Capacity – Five or six controllers without power supply

Enclosure

• One to six controllers (any combination)
• Controllers mount on a removable subpanel
• Designed for NEMA 4X rating
• Fiberglass box with full view polycarbonate window
• Stainless steel twist locks and hinge
• Easy access wiring terminal strip for each controller
• Offered with or without self-contained power supply
• Field power terminal strip for units with a power supply

Controllers

• Bar graph, digital display and LEDs
• AutoCal
• Microprocessor-based
• Relay or non-relay models available
• Relay contacts for high, auxiliary and low alarm and fault
• Configurable relays
• 4 to 20 milliampere output available
• Isolated/non-isolated current output
