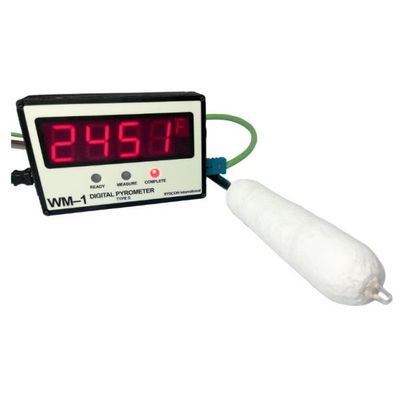

SYSCON Sensors - Model WM-1 -Wall-Mount Pyrometer

FromSYSCON SENSORS, Division of SYSCON International, Inc.

SHARE

SYSCON Sensors WM-1 is an accurate, easy-to-use, rugged and reliable wall mounted temperature measurement system designed for Foundries and Steel Mills. It can be used with molten Steel, Bronze, Cast Iron, Aluminum Alloys, Copper, Gold, Brass, and Silver. The WM-1 is ideally suited for SYSCON’s thermocouple tips, available in a variety of styles and options.

Most popular related searches

temperature monitoring system

mounted pyrometer

temperature monitoring

calibration standard

wall thickness monitoring

Ideal for Foundries and Steel Mills
Compatible with all standard thermocouple tips
High overall instrument accuracy of ±3°F (±2°C)
Bright and easy-to-read 2” LED display
End of measuring cycle LED indicator and alarm
Elapsed time between temperature readings
Rugged, dust-proof, NEMA panel
Customized lance options available

Input : 1 Thermocouple Input
Thermocouple Type : Type S, R, B or K
Calibration Standard : IPTS 48, IPTS 68, or ITS 90
Instrument Accuracy : ±3°F (±2°C)
Operating Temperature : 0°F - 122°F (-17°C - 50°C)
Ambient Humidity : 0 – 90% Non-Condensing
Recommended Temperature Ranges

Type S: 400°F - 3182°F (205°C - 1750°C)
Type K: 400°F - 2462°F (205°C - 1350°C)
Type B: 400°F - 3308°F (205°C - 1820°C)

Sound Level : 95 dB at 12 V
Input Power : 100 - 240 V AC 60 Hz
Dimensions : 10" W x 5.8" H x 2.4" D (25 cm x 15 cm x 15 cm)
Weight : 2.4 lb (1.1 kg)
