Cleanroom Italia - Model HPL -Wall Panels

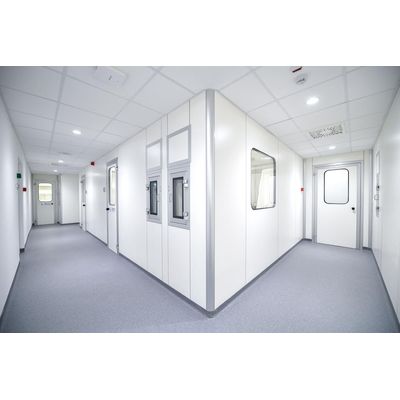

HPL Wall Panels from Cleanroom Italia consist of modular panels enveloped in high-pressure laminate (HPL) sheets, which exhibit a fire reaction class of B-s1-D0 in accordance with UNI EN 13501-1 standards. This construction offers heightened resistance to mechanical impact and chemical agents while ensuring comprehensive water resistance, making them suitable for demanding environments. The panels feature an internal aluminum frame assembled on all sides to enhance mechanical strength and house insulation materials. The overall panel thickness is 45 mm, ensuring a robust structure. The design incorporates aluminum profiles for panel connectivity, achieving perfect coplanarity with a 4 mm junction gap sealed with neutral mastic silicone. Ideal for clean room applications, these panels meet diverse industry requirements, offering a durable and efficient wall partition solution.
HPL walls are composed of panels covered with 4 mm thick HPL (High Pressure Laminate) sheets, fire reaction class B-s1-D0 (UNI EN 13501-1).
The specific properties of HPL ensure high resistance to impact, chemical agents and complete water resistance.
Each panel has an internal aluminum frame assembled on four sides to contain the insulation and to increase its mechanical resistance.
Internal insulation is available in the following materials:
- Self-extinguishing high-density polystyrene (25 Kg/mc) fire reaction class E (UNI EN 13501-1)
- Rock wool with high-density oriented fibers (120 Kg/mc) fire reaction class A1 (UNI EN 13501-1)
- Corrugated aluminum sheet, fire reaction class A1 (UNI EN 13501-1)
The overall thickness of the wall panel is 45 mm.
The connection between panels is made using aluminum profiles that guarantee the perfect coplanarity; the 4 mm gap formed by the junction is filled with neutral mastic silicone.
