Well Watch - Model 660 -Water Level Indicator

The ability to always know where your water levels are.
Understanding your well water levels has never been more important than it is today. Whether you live in an area affected by record breaking drought, fracking or you are concerned about over use in your community. These units can give you piece of mind by providing you with the ability to monitor current, real time levels or trends in usage and level patterns. These units are the perfect accessory for the home water well and still include all of the intelligence necessary to interface into municipal, irrigation or multi-use systems.

Affordable options to fit in any budget.
Until now the only methods of monitoring water levels in your well were intrusive water tapes, bubblers or transducers. These methods open your well to contamination issues and tend to get stuck in the pump wiring resulting in an expensive, time consuming fix. The Well Watch monitoring systems are sonic, using sound waves to non invasively measure water levels. This makes monitoring your well quick, safe and inexpensive. Each Well Watch unit costs less than half of traditional meters and includes more options than the others offer.

Easy installation.

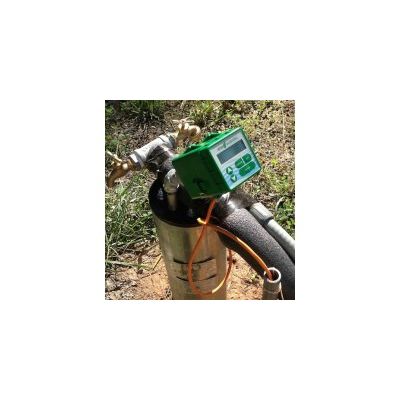

The Well Watch 600 Series units are easy to install in virtually any well setup. These meters can be adapted for use in wells from residential to large diameter industrial wells with sounding tubes. Each Well Watch unit comes with 3 MPT threaded nozzles, 1/2", 3/4" and 1" in diameter. Simply choose the nozzle which fits into the vent hole on your well seal or sounding tube and screw the Well Watch tightly into place. Attachments can be used to angle the units for tight fitting spaces since the Well Watch does not need to be vertical to get a good reading. Each Well Watch meter requires an external 6.5 to 12V DC or AC power source. Then, choose from the multiple output options available to work with your application, including RS232, RS485 (Modbus), 4-20mA, 0-5V Analog, and USB (Well Watch 660 DL only). The alarm feature can be used to alert you to a low water level, preventing overuse and/or costly damage to the pump.

Multiple user friendly configurations.
This Series has a model to work with any budget and need. The Well Watch 660 has a built in display which allows the user to view level data on site or transmit it through one of it`s multiple outputs. The Well Watch 660 DL incorporates the built in display, all of the available outputs and has an included data logger. The 660 DL can display and store up to 25 million time/date stamped data points which can be downloaded through USB. The data logger is a great way to view and graph your well`s levels to see how your usage affects the level during high and low trends. This is also a logical option for the remote well with data that just needs to be downloaded every month or as a back up in case of power loss to the SCADA system.

Where does it work and how do I install it.
Click below to view more information on how to install the Well Watch and Well Sounder units on various well configurations. These and the FAQs address the most common questions and potentially problematic well configurations, such as exposed perforations or loud top mounted pumps.

Measurement:

• Units - English (ft & in) or Metric
• Resolution - .05 ft (1 cm)
• Accuracy - .1 ft (3 cm)
• Range - 10 to 2000 ft (3 to 600M)
• Update time - ~1 sec @ 500 ft (150M)

Logging:

• Extended Memory (optional)- 2GB nonvolatile flash memory for 25 million data points in a windows compatible file.
• Automatic Logging Rates - 1 sec to 60 minutes per sample

Power:

• External Power - 6.5 to 12VDC at 80ma max.
• Do not exceed 16V.
• Real Time Clock (included with DL, extended memory package)
• Li Ion 3V battery CR2032

Environmental:

• Temperature - -10 to 110 F (-20 to 45 C)
• Humidity - 10 to 90% non-condensing

Physical:

• Meter Dimensions - 8.25 x 3.5 x 3.5"
• Probe Tip Dimensions - 1/2", 3/4" and 1" MPT

Features:

• Display - 2 x 16 character LCD
• Temperature compensation in unit

Input/Output:

• RS232
• RS485 (Modbus)
• 4-20mA output
• 0-5V Analog output
• 5V Alarm output
• USB (included with DL, extended memory package)
• Built-in wireless link for use with remote display
