Chambers - Water Level Logger

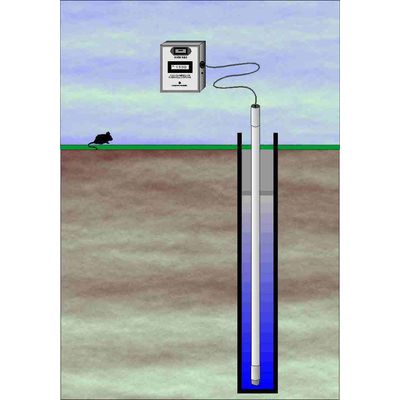

The Automatic Water Level Logger is a sophisticated unit for automatically recording water height at pre-programmed time intervals for up to two years. It can be used for measuring soil conductivity, monitoring the height of water in rivers, or measuring flow rates etc. The data is downloaded directly onto a PC without the need of further equipment. The software provides a graphical display of the water level. It also gives the maximum and minimum values, and allows the user to export the data into a spreadsheet. The probe has been redesigned so that it can be placed directly into the water without the need of a protective tube. The unit includes a robust protective housing.
General
Water table height range: 0 to 1.4 metre (or as required)
Accuracy: <0.5% (normal operating conditions)
Logger Resolution
Resolution: 5 mm
Information stored: Water depth; Date and Time; Temperature, GPS Location
Data Logging
Satellite data transmission
Logging Interval: 3 to 12 hours
Data Transmission Rate: Once per day
Dimensions
Transducer Pipe: 22 mm (diam.) x 1500 mm (or as required)
Control box: 188 mm x 188 mm x 130 mm
Displays
Data displayed on secure web-based user dashboard
Digital LCD Display to assist with installation and check real time water depth. Activated using magnetic Reed switch
Battery Type
2 x D size 3.6V Lithium
Battery Life
>5 Years depending on configuration
