Gröger & Obst Vertriebs- und Service GmbH

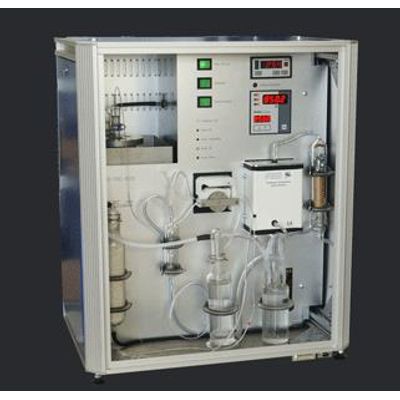

Gröger - Model GO-TOC 1000 -Water Measuring Systems
Complete measuring system for continuous detection of the total organic carbon (TOC) in Water with automatic sample preparation.
Most popular related searches
water monitoring system
automatic sample preparation
autosampling preparation
sewage treatment plant monitoring
total organic carbon
water monitoring
surface water testing
TOC in water
water quality control
sewage treatment plant
Diverse applications GO-TOC 1000:
-
Sewage treatment plant monitoring
-
Monitoring of industrial sewage
-
Drinking water control
-
Surface water testing in refineries and at airports
-
Water quality control
-
Continuous measurement acquisition
-
Measurement according to DIN 38409 and EN 1484
-
Online operation
-
Automatic sample preparation
-
Robust proven technology
The GO-TOC 1000 is a space-saving and cost-effective variant for TOC determination in the product range of GRÖGER & OBST.
Standard equipment
-
NDIR-Optik-Bank
-
Serial Interface RS 232
-
4-channel metering pump
-
Gas cooler GO-EPK 1
-
Thermal reactor (850 °C)
-
Automatic sample preparation
-
Evaluation and documentation software
Options / accessory
-
Data logger
-
Inline filter GO-RIF
-
Limit contact
- Measuring ranges 0 – 300 mg C/L other measuring ranges on request
- Measuring range ratio ——–
- Smallest measuring range ——–
- Measuring range switching ——–
- Display 4 ½ -digital display LCD
- Reproducibility +/- 2,5 %
- Time for heating up approx. 180 minutes
- Output signal 0/4-20 mA serial interface RS 232
- Operating temperature oxidation furnance 850°C
- 90% time dependent on cable lengths and parameters
- Weight approx. 34 kg
- Power supply 230 V, 50 Hz
- Power consumption max. 1600 VA
- Dimensions (W x H x D) 690 x 590 x 440 mm
