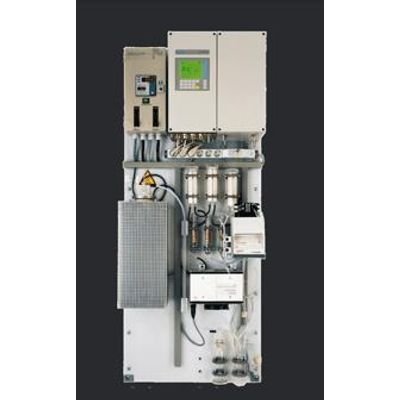

Gröger - Model GO-TOC P -Water Measuring Systems

Versatile applications GO-TOC P:

• Sewage treatment plant monitoring
• Monitoring of industrial sewage
• Drinking water control
• Surface water testing in refineries and at airports
• Water quality control

• Continuous measurement acquisition
• Measurement according to DIN 38409 and EN 1484
• Online operation
• Automatic sample preparation
• Robust proven technology
• Siemens Gas Analyzer

• Ultramat 6 F / 6 EU / 6 E – 2 PU
• Serial Interface RS 485
• 4-channel metering pump
• Gas cooler  GO-PK 2
• Thermal reactor (850 °C)
• Automatic sample preparation
• Construction of mounting plate
• Software Siprom GA

• Measuring ranges 4, freely programmable within the measuring range ratio
• Measuring range ratio max. 1 : 20
• Smallest measuring range TOC 0 – 1 mg C/l TN 0 – 100mg N/l
• Measuring range switching Automatic or manual
• Display 4 ½ -digit display LCD
• Reproducibility +/- 2,5 %
• Time for heating up approx. 180 minutes
• Output signal 0/2/ 4-20 mA serial interface RS 485 / Profibus
• Operating temperature oxidation furnance 850°C
• 90% time dependent on cable lengths and parameters
• Weight approx. 100 kg / in steel cabinet 190 kg
• Power supply 230 V, 50 Hz
• Power consumption max. 1600 VA
• Dimensions (W x H x D) approx. 1700 x 700 x 350 mm mounting plate
• approx. 1900 x 800 x 500 mm in steel cabinet
