Gröger - Model GO-TOC 100 P/L -Water Measuring Systems

FromGröger & Obst Vertriebs- und Service GmbH

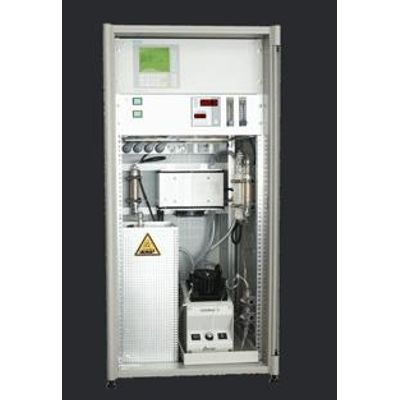

Complete measuring system for continuous detection of the total organic carbon (TOC) in Water with automatic sample preparation. Optional with TN measurement.

Most popular related searches

water monitoring system

automatic sample preparation

autosampling preparation

sewage treatment plant monitoring

water quality control

autosampling

Sewage treatment plant monitoring
Monitoring of industrial sewage
Drinking water control
Surface water testing in refineries and at airports
Water quality control

Continuous measurement acquisition
Measurement according to DIN 38409 and EN 1484
Online operation
Automatic sample preparation
Robust proven technology
Siemens Gas Analyzer

Standard equipment

Ultramat 6 F / 6 EU / 6 E – 2 PU
Serial Interface RS 485
4-channel metering pump
Gas cooler GO-PK 2
Thermal reactor (850 °C)
Automatic sample preparation
Construction in 19“ table housing
Software Siprom GA

Options / accessory

Sample point switching
Automatic calibration function
Dilution unit
Model for simultaneous analysis for TOC and TN
Inline filter GO-RIF

Measuring ranges 4, freely programmable within the measuring range ratio
Measuring range ratio max. 1 : 20
Smallest measuring range TOC 0 – 1 mg C/l TN 0 – 100mg N/l
Measuring range switching Automatic or manual
Display 4 ½ -digit digital display LCD
Reproducibility +/- 2,5 %
Time for heating up approx. 180 minutes
Output signal 0/2/ 4-20 mA serial interface RS 485 / Profibus
Operating temperature oxidation furnance 850°C
90% time dependent on cable lengths and parameters
Weight approx. 95 kg
Power supply 230 V, 50 Hz
Power consumption max. 1600 VA
Dimensions (W x H x D) 600 x 1150 x 600 mm
