Geolux HydroTemp - Water Temperature Sensor
FromGeolux d.o.o.

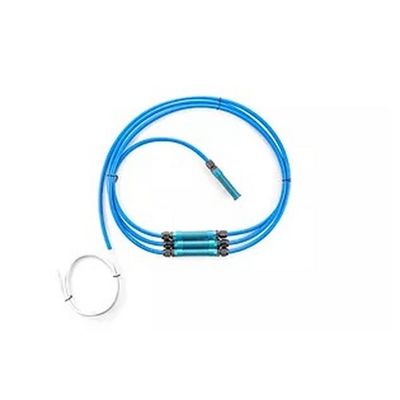

The Geolux HydroTemp sensor comes as a single sensor or a multi-sensor array version for immersion into the water or soil to measure temperature in a single or multiple depths. Both variants have standard RS-485 Modbus and SDI-12 interfaces for easy integration with Geolux and third-party dataloggers. It is possible to connect up to 16 sensors in the multi-depth configuration with customizable distance between the sensors. The HydroTemp sensor has a high accuracy of 0.1 °C and a resolution of 0.01 °C for temperatures ranging from -20 °C to +70 °C, and a fast temperature change response due to the aluminum enclosure.
Most popular related searches
temperature sensor
water temperature monitoring
water temperature sensor
temperature monitoring
depth sensor
water monitoring
soil temperature monitoring
soil temperature sensor
depth measurement
water sensor
- Scientific-grade accuracy
- Measures water, liquid, or soil temperature
- Single temperature sensor and multi-depth version with up to 16 sensors
- Low power consumption
- RS-485 Modbus, SDI-12, and RS-232 interface available on all instruments
- River and channel temperature monitoring
- Oceanographic multi-depth temperature measurement
- Water temperature supervision for aqua culture farming
- Ecology water temperature monitoring
- Multi-depth temperature sensor perfect for thermoclime observation
General specifications
- Sensor type Digital MEMS (meets ASTM E 1112 and ISO 80601-2-56)
- Measurement range -20 °C to +70 °C
- Resolution 0.01 °C
- Accuracy 0.1 °C in whole operating range
- IP Rating IP68
- Enclosure Type Anodized aluminum
- Enclosure Dimension Φ16.5 mm x H 90 mm
- Communication Interface 1x RS-485 Modbus RTU, 1 x SDI-12
Electrical & Mechanical
- Input Voltage 9 to 27 VDC
- Power Consumption 0.15 W operational; 0.055 W standby
- Maximal Current < 100 mA
- Multi Depth Sensor Up to 16 sensors in single line
- Maximum Water Depth 150 m
- Enclosure Dimensions Φ16.5 x H 90 mm
