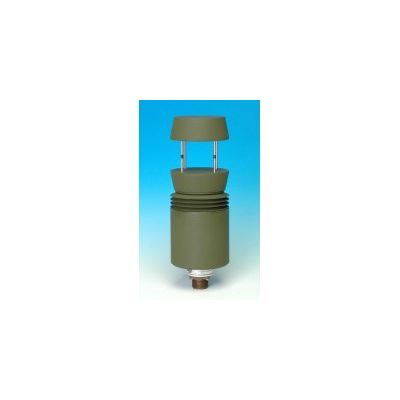

TACMET - Model II -Weather Sensor System (JBPDS)

SHARE

Climatronics` TACMET II Weather Sensor System (JBPDS), P/N 102451, is a second-generation weather sensor, which includes a number of features now possible with new sensor technology resulting from our commitment to product improvement. The TACMET II Weather Sensor System (JBPDS) incorporates Climatronics’ new and unique folded-path, low-power sonic anemometer, the Sonimometer, with a temperature sensor, a fast-response capacitive relative humidity sensor, and an internal flux-gate compass. An on-board microprocessor provides a digital output message (serial ASCII, RS-232C).

Most popular related searches
weather sensor system
weather sensor
sensor system
relative humidity sensor
humidity sensor
capacitive humidity sensor
weather station system
sonic anemometer
weather station
temperature sensor

Preserving much of the compact size and weight, low power, and reliability of its predecessor, the TACMET II Weather Sensor System (JBPDS) includes an internal flux gate compass to automatically orient the wind direction data to magnetic North.

The TACMET II Weather Sensor System (JBPDS) has an aluminum housing and special filtering for EMI/RFI resistance. Several paint colors are available.

The TACMET II Weather Sensor System (JBPDS) is designed for maximum durability, portability, and utility, making it uniquely applicable for rapid deployment and use by one person under adverse conditions. The sensor may be mounted on a tripod or vehicle mast.

The TACMET II Weather Sensor System (JBPDS) is supported by a number of accessories, including: carrying cases; hand-held displays; compact, lightweight tripods; and, depot repair and calibration fixtures.

  • Sonimometer Wind Sensor
  • Fast Response Relative Humidity Sensor
  • Flux-Gate Compass
  • Digital Output

Performance:
Wind Speed

  • Range: 0-65 m/s (0-145 mph)
  • Accuracy: * ±0.5 m/s (1.1 mph) or 5%
  • Resolution: 0.1 m/s (0.22 mph)

Wind Direction

  • Range: 0 to 360°
  • Accuracy: * ± 3° @ wind speed > 2.2m/s (5 mph) (Including compass error)
  • Resolution: ±1.0°

Compass

  • Accuracy: ±2°

Temperature

  • Range: -40°C to +60°C (-40°F to 140°F)
  • Accuracy: ±2.0°C (±3.6°F)@WS>2.0 m/s (4.5 mph)
  • Resolution: ±0.1°C

Relative Humidity

  • Range: 0 - 100 %
  • Accuracy: ±3 %
  • Resolution: ±1.0 %

Electrical:

  • Measurement Format Two orthogonal axes, North/South and East/West
  • Measurement Rate: 2 Hz each axis
  • Operating Frequency: 40 KHz
  • Signal Output: RS-232C, RS-422 or RS-485, ASCII @ 1200/19200 BPS
  • Power Requirements: 9.5-36 Vdc @ 50 mA nominal, option dependent

Environmental:

  • Temperature: -40° to 60°C (-40° to 140°F)
  • Humidity: 0-100%
  • Altitude: -100 to +12,000 ft MSL

Physical:

  • Weight: 1.8 Kg (4.0 lbs.)
  • Size: 311 mm (12.25″) high by 101.6 mm (4.0″) diameter
  • Mounting: P/N 102621-GX-XX or P/N 102286-XX sensor mount to 3/4″, 1″, or 1.25″ IPS vertical pipe stub
  • Colors: Finished per Finished Per MIL-DTL-64159:
    • CARC Green 383, 34094
    • CARC Tan 686A, 33446
    • CARC Aircraft White, 37875

Shipping:

  • Weight: 2.5 Kg (5.5 lbs)
  • Volume: 0.012 m3 (0.44 ft3)
