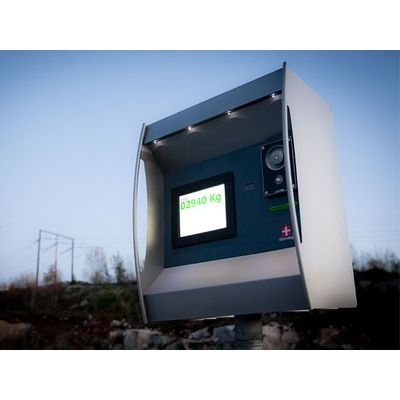

Danvægt - Model DV PRO -Weighbridge Terminals
The weighbridge terminal has a flexible and modular structure so it can meet all selfservice identification and data transfer needs. The DV PRO is the smartest weighbridge terminal on the market. Its stainless steel cabinet is specially designed for industrial use outdoors and supports a wide range of applications, e.g. weighings on a weighbridge. The DV PRO has an extra strong handle designed to withstand impact from side mirrors for example, protecting the terminal and the electronics inside.
The DV PRO can be upgraded with a variety of applications for robust user weighbridge terminals. Apart from Danvaegt’s own software solutions, many external suppliers have created software for the DV PRO.
- Bright 15” 1000 nit colour screen with 1024x768 resolution, recessed into the front panel with an IP 65 seal.
- Touch functionality integrated in the screen.
- PC terminal, with Pentium-M processor and no moving parts.
- Network connection for communication with PC system.
- LED lighting for night-time use. The LED gives a welcoming, clear, bluewhite light to help users find their way.
- Thermostatic heating element.
- AISI 304 stainless steel cabinet with bead-blasted surface.
- The cabinet has stainless steel bar handles. There is a lockable hatch on the rear of the cabinet for service/ installation.
The cabinet is supplied with a revolving base so it can be adjusted to face the user. A separate screen and PC in the terminal is used to minimise future service costs and for greater flexibility.
- Thermal printer to print weighing receipts
- Red/green LED signals
- GSM modem or wireless network connection
- Magnetic strip reader, slot reader with/ without motor control
- Barcode reader or RFID unit
- Intercom or telephone system
- 8 floating outputs and 7 input
The construction of the DV PRO terminal can be modified as necessary and can be installed anywhere, either on existing foundations or special, prefabricated DV PRO foundations.
