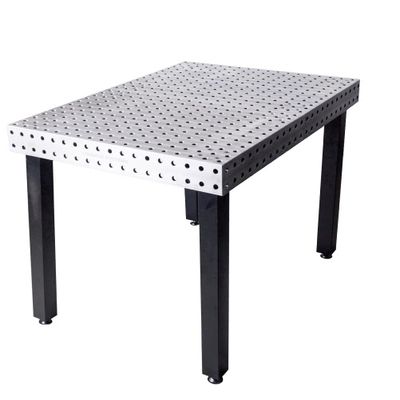

Langmuir ArcFlat - Weld Table

ALL 5 SURFACES CNC MACHINED
The ARCFLAT cast iron modular fixture table features surfaces machined flat to ±0.0075” and square to 0.1 degrees.

336 HOLES FOR QUICK FIXTURING
ARCFLAT provides fast and easy clamping anywhere on the top and sides of the table. Use Langmuir Systems Modular clamps or third-party 5/8" or 16mm clamps and tooling.

NO ASSEMBLY, NO HASSLES
ARCFLAT ships via standard ground direct to your door. There`s no welding, no warping, and no wasted time compared to flat plate weld-it-yourself tab and slot tables.

DURABLE SURFACE
Machined from a thick block of nodular cast iron, the ARCFLAT is durable, thermally stable, and dent resistant.

Modular to fit your needs
Arcflat blocks can bolted together to create any size or shape table. Use the standard size in your garage or create any combination of larger tables.

Material Grade: Nodular Cast Iron
Dimensions: 36" length x 24" width x 4" height
Gross Weight: 145 lb
Static Load Capacity: 1000 lb
Thickness: Topside 3/8", Sidewall 5/16"
Surface Flatness: ±0.0075"
Edge Perpendicularity: ±0.1 degrees
Hole Size: 0.630" +0.010" -0.005"
Hole Pattern: 2" x 2" grid
