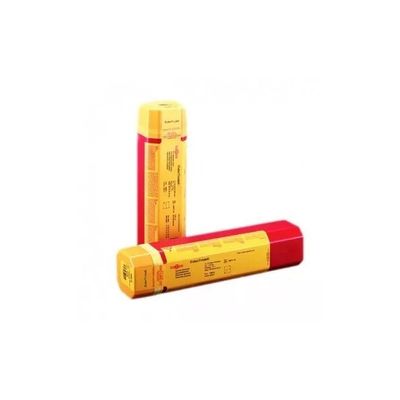

Castolin Eutectic Xuper NucleoTec - Model 2222 -Welding Steels Stick Electrode
The NiCr-based weld metal of the basic coated stick electrode is corrosion-resistant, scale-resistant and low temperature-tough. High ductility. Reduction of residual welding stresses through plastic deformation. No risk of embrittlement due to σ-phase, carbide or nitride formation.
- DIN EN 14700: ~ E Ni1
- EN ISO 14172: Ni6182 (NiCr 15 Fe 6 Mn)
- Material no.: ~ 2.4807
For joining and surfacing nickel alloys and unalloyed, low-alloyed and high-alloyed steels. steels. Also for welding steels that are difficult to weld, e.g: Tempered and tool steels.
Typical applications are Components and systems for low or high temperature applications.
Processing instructions
Remove cracked and otherwise damaged material. Clean welding areas. Re-dry at 350 °C / 2 h. During welding, adjust the heat input to the component, its material and dimensions. Use line bead technique with low line energy. For workpieces with shrinkage workpieces, first alloy the flanks. Use wire brushes made of austenitic CrNi steels.
Welding positions: all, except PG (f)
Type of current: = (+)
- Code: 100051
- Category: Nickel
- Number in package: 2.5 kg
- Price per unit: €381.55 / kg
- Price excl. VAT: €953.88
- Price incl. VAT 23%: €1,173.27
- Availability: within 7 to 10 days
Diameter/weight:
- Ø 2.5mm / 2.5kg
- Ø 3.2mm / 5.0kg
- Ø 4.0mm / 5.0kg
- Ø 5.0mm / 5.0kg
