RMSpumptools - Wellhead Penetrators - Vertical
The Vertical Wellhead Penetrator System is one of our most popular products and comprises of a Lower Hanger Penetrator and a Surface Connector (which can be either 45 or 90 degrees). The System is designed to withstand a broad spectrum of downhole conditions including High Temperature, H2S and CO2. Power specification ranges from our standard NEXUS Series at 140 amps/5 kVAC, to our FRONTIER Series at 250 amps/8 kVAC, with a working temperature of 450°F.
NEXUS Series - Standard Range
FRONTIER Series - High Temp/High Power
All variations can be factory moulded to a range of cable types and sizes, many of which are stocked by RMSpumptools - alternatively, Wellhead Penetrators can be configured with a Field Attachable connection. A vast array of profiles are available off-the-shelf and custom profiles can also be provided - including shape and materials, through to power and pressure specifications.
- Experience and Track Record - The industry’s unchallenged number one choice for reliability. Exclusive supplier to the demanding North Sea market for over 20 years.
- Field Attachable or Factory Moulded - Providing both options for multiple configurations.

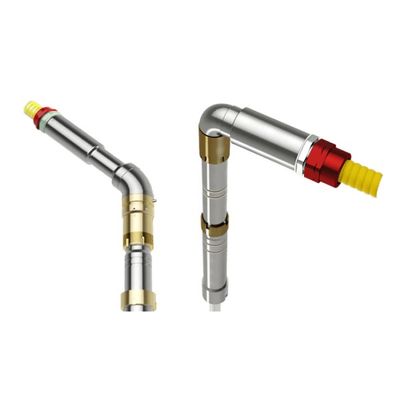

- Surface Connector Options - Available with 45º or 90º Surface Connectors.
- Unique Protection System - Internals have total isolation from well fluid environment for exceptional reliability.
- Unique Pressure Barrier Technology - Zero Gas Leakage, total safety security with zero possibility of surface explosions.
- ‘Plug & Play’ Design - Single, factory assembled and tested product, prevents damage during installation. No special training, or specialist required - saving rig time and eliminating human error.
- Permanently Activated Internal Seals - No pressure-activated seals, no possibility of gas migration through penetrator, even at low pressures.
- Compact Design - Entire penetrator is enclosed and protected by the wellhead, avoiding penetrator damage when landing hanger.
- No Specialist Tooling Required - Reduced risk of delays due to missing or broken specialist tooling.
