Klaudia - Model IgE 81/63 -Wellpoint Dewatering System

SHARE

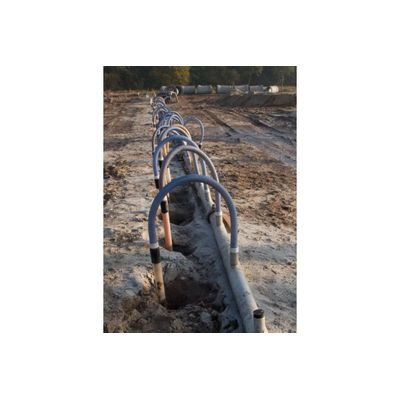

Wellpoint system IGE-81/63 is designed for intensive ground dewatering. The difference between IgE 81/32 and Ige 81/63 is increased diameter of wellpoint (from 1″ to 2″), different suction header connections, and existence of additional flexible connectors for each wellpoint.

Most popular related searches
wellpoint dewatering system
wellpoint dewatering
dewatering system
wellpointing
wellpoint
riser pipe
dewatering
piston pump
PE pipe

The system is replacement for steel based wellpoint installations with 2″ wellpoints. Wellpoint 63mm (internal diameter 50mm) has filter 600mm long.Its mounted by thread with PE riser pipe (what is usable for transport and service purposes). In standard we propose wellpoint (header+riser pipe)in total lenght 5000mm. Other options allowed too. Base diameter recommended for the system for suction headers is 133mm.

Wellpoint system IgE 81/63 is especially recommended for very high permeability grounds with high content of gravel.

 For work with that filteres there are recommended high capacity pumps with max. capacity like 300-400m3/h.  There could be also suitable piston pump, working with 40mts set.
