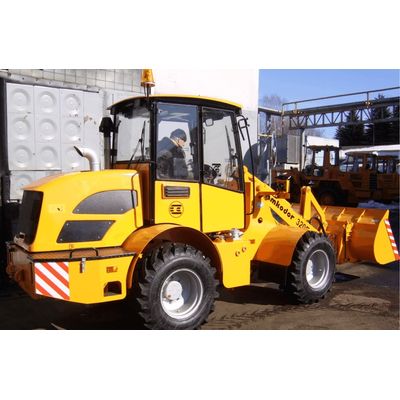

Amkodor - Model 320 -Wheel Loader
Wheel loader AMKODOR 320 is a multifunctional light machine equipped with a mechanical quick coupler that allows you to use a range of changeable working attachments to perform a wide range of operations in various sectors of the economy.
ENGINE
Model – D-245.43S2
Manufacturer – Minsk Motor Plant
Rated power, kW (hp) – 62 (84)
TRANSMISSION
Hydrostatic closed with adjustable pump and hydraulic motor
MAX. TRAVEL SPEED, KM/H:
operating (I range) – 10
transport (II range) – 20
Lead axles – 10?/10??
Manufacturer – AMKODOR
Limited Slip Differential
Tires – 16.0-20
HYDRAULIC SYSTEM
Hydraulic system of working attachments and steering: 2-pump, with one pump for loading attachment and a separate pump for brakes and steering
Swing system: articulated, hydraulically actuated
Service brakes: multi-disc brakes in oil of the front axle, hydraulically actuated
Parking and emergency brake systems: mechanically controlled single disc brake
ELECTRICAL SYSTEM
Voltage, V – 24
CABIN
Type Closed, integral
ROPS/FOPS – Integrated
OTHER
Air Conditioning – Option
OVERALL AND WEIGHT SPECIFICATIONS
Carrying capacity, kg – 2000
Quick coupler – Mechanical
Rated bucket capacity, m3 – 1.1
Dump height, mm – 2600
Bucket lip reach, mm – 880
Bucket lip width, mm – 2100
Swing radius on outer bucket lip in transport position, mm – 4800
Length in transport position with main bucket, mm – 6000
Wheel width, mm – 2000
Cabin roof height, mm – 2800
Operating weight, kg – 6950
