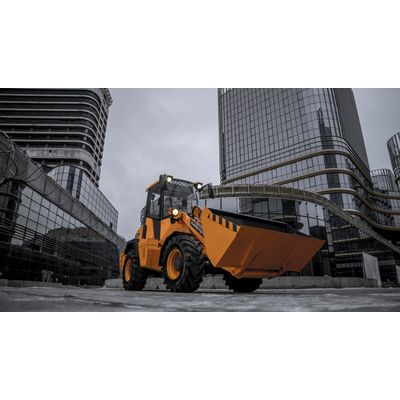

Amkodor - Model W200C -Wheel Loader
Wheel loader AMKODOR W200C is a multifunctional light machine equipped with a hydraulic quick coupler that allows you to use a range of changeable working attachments to perform a wide range of operations in various sectors of the economy.
ENGINE
Model – D-243S2-1604 (Tier II)
Manufacturer – Minsk Motor Plant
Rated power, kW (hp) – 60 (81.6)
TRANSMISSION
Hydrostatic closed with adjustable pump and hydraulic motor
MAX. TRAVEL SPEED, KM/H:
operating (I range) – 10
transport (II range) – 20
Lead axles – 10?/10??
Manufacturer – AMKODOR
Limited Slip Differential
Tires – 16.0-20
HYDRAULIC SYSTEM
Hydraulic system of loading attachments and steering: 2-pump, with one pump for loading attachments and a separate pump for brakes and steering
Swing system: articulated, hydraulically actuated
Service brakes: multi-disc brakes in oil of front hydraulically actuated axle
Parking and emergency brake systems: mechanically controlled single disc brake
ELECTRICAL SYSTEM
Voltage, V – 12
CABIN
Type Closed, integral
ROPS/FOPS – Integrated
OTHER
Air Conditioning – Option
OVERALL AND WEIGHT SPECIFICATIONS
Carrying capacity, kg – 2000
Quick coupler – Hydraulic
Main bucket capacity, m3 – 1.1
Dump height, mm – 2700
Bucket lip reach, mm – 710
Bucket lip width, mm – 2100
Swing radius, mm – 4800
Length in transport position, mm – 5840
Wheel width, mm – 2000
Cabin height, mm – 2800
Operating weight (incl. main bucket), kg – 6850
